Unit · AXIAL-PISTON PUMP
APA10VO140DFR1/31L-VWC62K07-S1149R902417885
Axial piston pump Bosch Rexroth series A10VO, type code APA10VO140DFR1/31L-VWC62K07-S1149, material number R902417885. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: same as "U", higher torque; limited suitability for through drive; for mounting option (W). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 127-2 (C) 1 1/4 in 14T 12/24DP (K07). Special version no. 1149.
- Number
- R902417885
- Type code
- APA10VO140DFR1/31L-VWC62K07-S1149
- Group
- A10VO 140
- Edition
- 06/2020

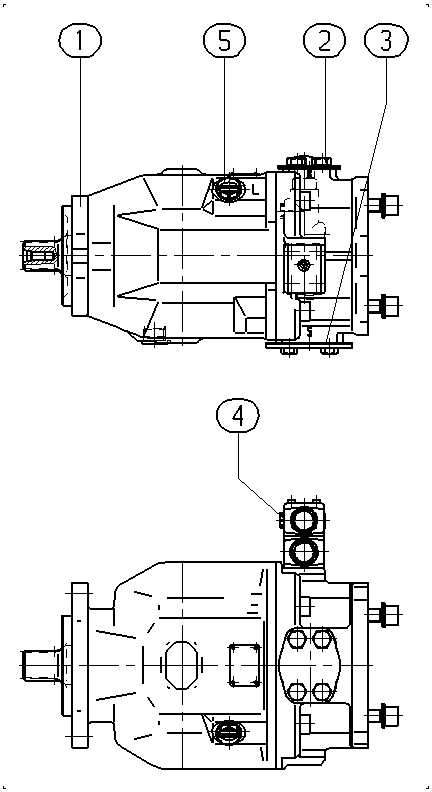

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902418294 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400585 | FLANGE COVER | 1 | ||
| R902400595 | FLANGE COVER | 1 | ||
| R902602015 | SEAL SCREW | 1 | ||
| R902603191 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Same as "U", higher torque; limited suitability for through drive; for mounting option | W |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | 127-2 (C) 1 1/4 in 14T 12/24DP | K07 |
