Unit · AXIAL-PISTON PUMP
A A10VSO 18 DR /31L-VSC62N00 -SO 94R902418116
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO18DR/31L-VSC62N00-SO94, material number R902418116. Nominal size: NG 18. Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00). Special version no. 94.
- Number
- R902418116
- Type code
- A A10VSO 18 DR /31L-VSC62N00 -SO 94
- Group
- A10VSO 18
- Edition
- 06/2020

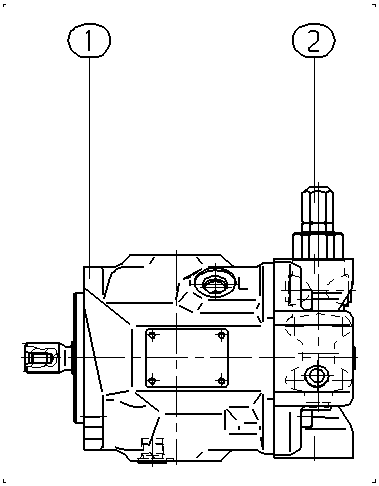

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902418080 | BASE UNIT Assembly parts list →L | 1 | ||
| R902453112 | CONTROL VALVE Assembly parts list →L | 1 | ||
| 70 | R902421944 | SHIPPING PROTECTION | 1 | |
| 71 | R902421945 | SHIPPING PROTECTION | 1 | |
| 72 | R902602015 | SEAL SCREW | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | Without through drive | N00 |
