Unit · AXIAL-PISTON PUMP

A A10V O 85 DFR1/52R-PUC11N00 -S1387R902418541

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO85DFR1/52R-PUC11N00-S1387, material number R902418541. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive (11). Through drive: without through drive (N00). Special version no. 1387.

Number: R902418541
Type code: A A10V O 85 DFR1/52R-PUC11N00 -S1387
Group: A10VO 85
Edition: 06/2020

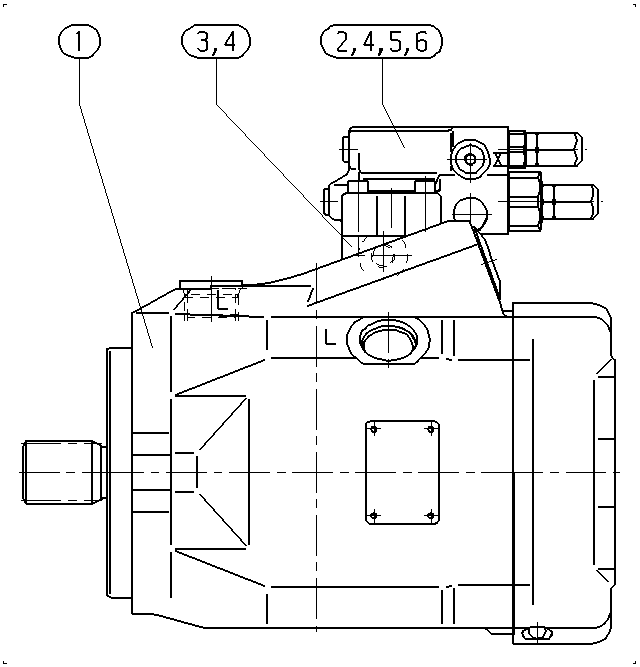

A A10V O 85 DFR1/52R-PUC11N00 -S1387 — Drawing

Pos.	Number	Name	Qty
	R902412494	BASE UNIT Assembly parts list →L	1
	R902449481	CONTROL VALVE Assembly parts list →L	1
	R902418518	INTERMEDIATE PLATE	1
	R910515078	O-RING	3
	R910420794	SOCKET HEAD CAP SCREW	4
	R909154478	SCREW PLUG	1
7	R909151692	SCREW PLUG	1
15	R902434482	SEAL	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	85	85
Control device	with flow controller X-T plugged with flushing function	DFR1
Series	Series 5, index 2	52
Direction of rotation	Viewed on drive shaft clockwise	R
Drive shaft	reduced diameter, limited suitability for through drive	U
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive	11
Through drive	Without through drive	N00

Parameters from the type code

Other versions 2
