Unit · AXIAL-PISTON PUMP
AA7VO500HD3G/63L-VZH01R902418654
Axial piston pump Bosch Rexroth series A7VO, type code AA7VO500HD3G/63L-VZH01, material number R902418654. Nominal size: NG 500.
- Number
- R902418654
- Type code
- AA7VO500HD3G/63L-VZH01
- Group
- A7VO 500
- Edition
- 06/2020

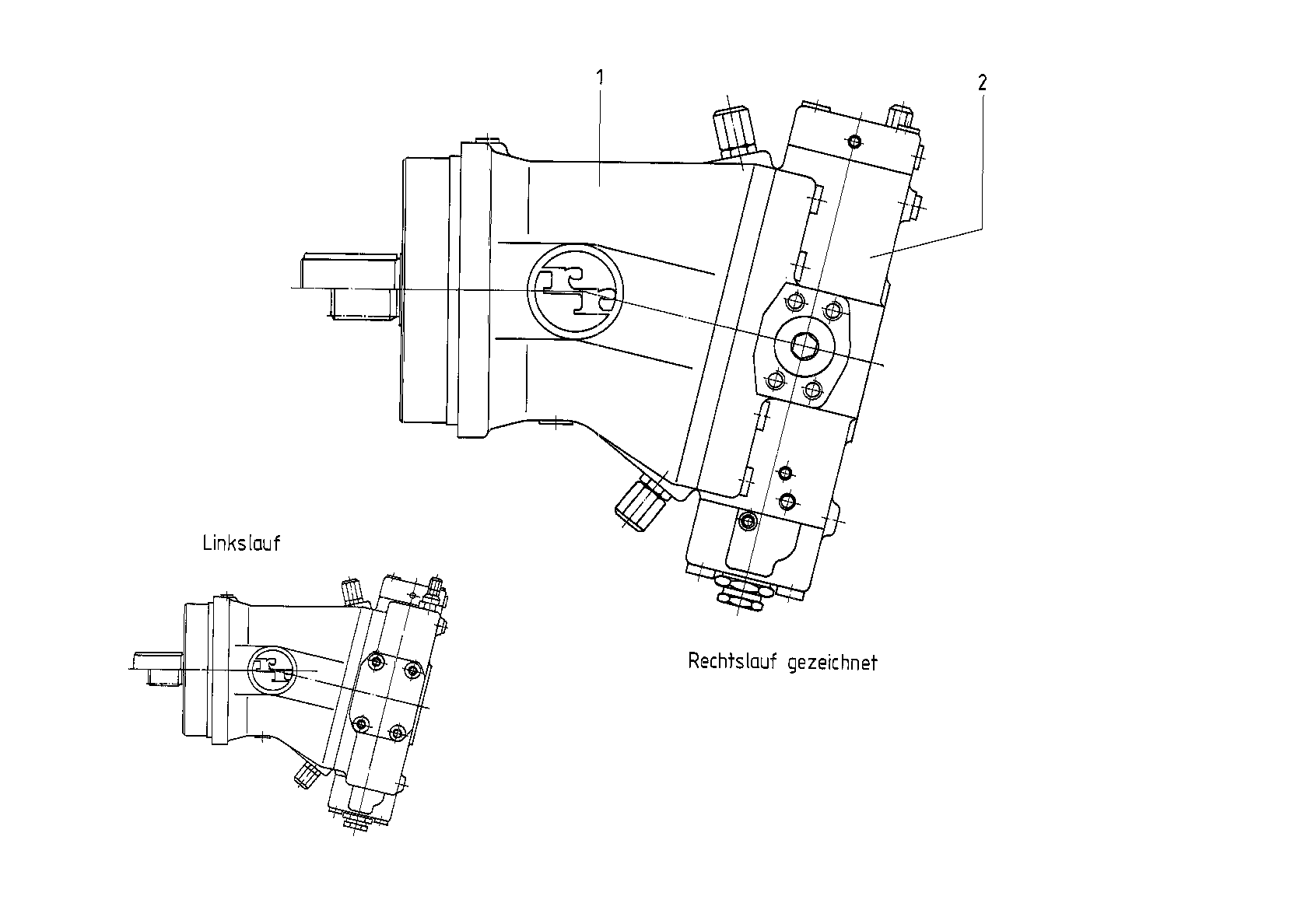

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902414108 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| 2 | R902418656 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 500 | 500 | |
| Hydraulic control, pilot pressure dependent, with pressure control, remotely adjustable Δp = 35 bar | HD3G | |
| Series 6, Index 3 | 63 | |
| counter clockwise | L | |
| FKM (Fluoro-rubber) | V | |
| Service line connections 250 355 500, SAE-flanged port B or A, at rear (metric fixing bolts) SAE flanged port S, at rear(metric fixing bolts) | 01 |
