Unit · AXIAL-PISTON MOTOR
A A6V E 250 HA1T /63W1-VZM027 AR902420177
Axial piston motor Bosch Rexroth series A6VE, type code AA6VE250HA1T/63W1-VZM027A, material number R902420177. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: plug-in motor (E). Control device 250: automatic control, With minimum pressure increase Δp ≤ approx. 10 bar high-pressure related (HA1). Override (only for HA) 250: override hydraulic remote controlled, proportional (T). Direction of rotation 250: viewed on drive shaft, bi-directional (W). Setting range for displacement 250: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Sealing material 250: FKM (fluoroelastomer) shaft seal (V). Drive shaft 250: splined shaft DIN 5480 (Z). Mounting flange 250: based on ISO 3019-2 4-hole (M).
- Number
- R902420177
- Type code
- A A6V E 250 HA1T /63W1-VZM027 A
- Group
- A6VE 250
- Edition
- 06/2020

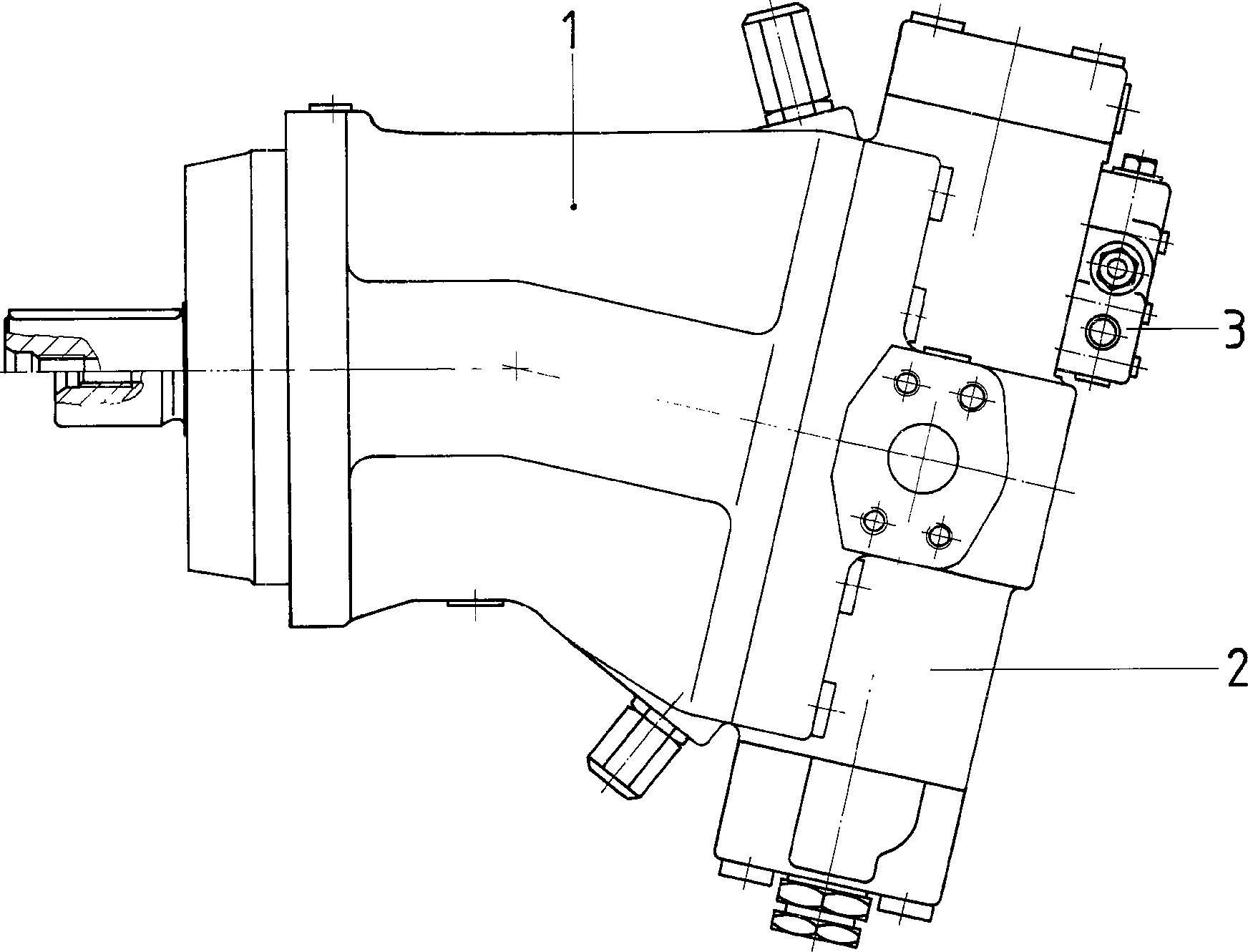

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910970769 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R910993845 | CONTROL Assembly parts list →L | 1 | ||
| R910800755 | FLUSH/BOOST PRESSURE VALVE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Plug-in motor | E |
| Control device 250 | Automatic control, With minimum pressure increase Δp ≤ approx. 10 bar high-pressure related | HA1 |
| Override (only for HA) 250 | Override hydraulic remote controlled, proportional | T |
| Series 250 | Series 6, index 3 | 63 |
| Direction of rotation 250 | Viewed on drive shaft, bi-directional | W |
| Setting range for displacement 250 | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Sealing material 250 | FKM (fluoroelastomer) shaft seal | V |
| Drive shaft 250 | Splined shaft DIN 5480 | Z |
| Mounting flange 250 | Based on ISO 3019-2 4-hole | M |
| SAE working ports A and B at side, opposite, 02 fastening thread, metric Flushing and boost-pressure valve, mounted 7 | 027 | |
| At Vg min (standard for HA) | A |
