Unit · AXIAL-PISTON PUMP

ALA10VO71DFLR/31L-PSC62K68-SO225R902420212

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO71DFLR/31L-PSC62K68-SO225, material number R902420212. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 225.

Number
R902420212
Type code
ALA10VO71DFLR/31L-PSC62K68-SO225
Group
A10VO 71
Edition
06/2020

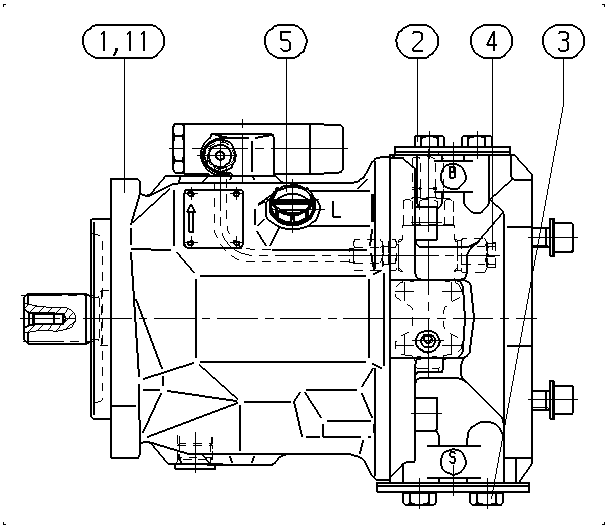

ALA10VO71DFLR/31L-PSC62K68-SO225 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902418686AXIAL-PISTON PUMP Assembly parts list →L1
R902534067FLANGE COVER1
R902400591FLANGE COVER1
R902602008SEAL SCREW1
R902603190SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)7171
Control devicePressure, flow and power controllerDFLR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft Counter-clockwiseL
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive62
Through drive101-2 (B) 7/8 in 13T 16/32DPK68
