Unit · AXIAL-PISTON PUMP
A A10V O 74 DRG /31L-VSC91N00 -S1063R902420221
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO74DRG/31L-VSC91N00-S1063, material number R902420221. Nominal size: NG 74. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off Hydraulic Remote controlled (DRG). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC (91). Through drive: without through drive (N00). Special version no. 1063.
- Number
- R902420221
- Type code
- A A10V O 74 DRG /31L-VSC91N00 -S1063
- Group
- A10VO 74
- Edition
- 06/2020

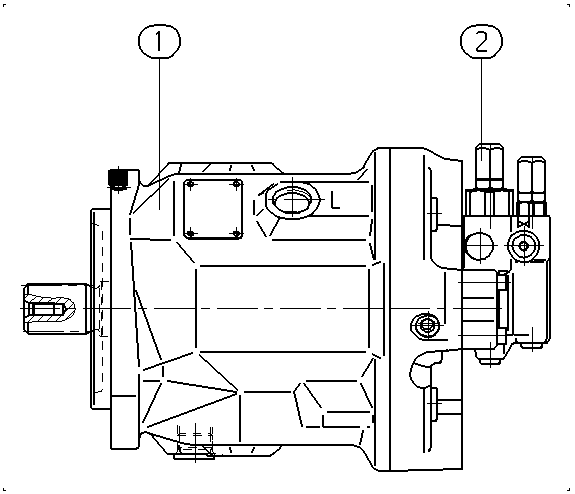

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902420202 | BASE UNIT Assembly parts list →L | 1 | ||
| R902456803 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 74 | 74 |
| Control device | With pressure cut-off Hydraulic Remote controlled | DRG |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC | 91 |
| Through drive | Without through drive | N00 |
