Unit · POMPA OSIOWO-TŁOKOWA
A A10VSO140 DFLR/31L-PSB12N00R902420631
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO140DFLR/31L-PSB12N00, material number R902420631. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00).
- Number
- R902420631
- Type code
- A A10VSO140 DFLR/31L-PSB12N00
- Group
- A10VSO 140
- Edition
- 06/2020

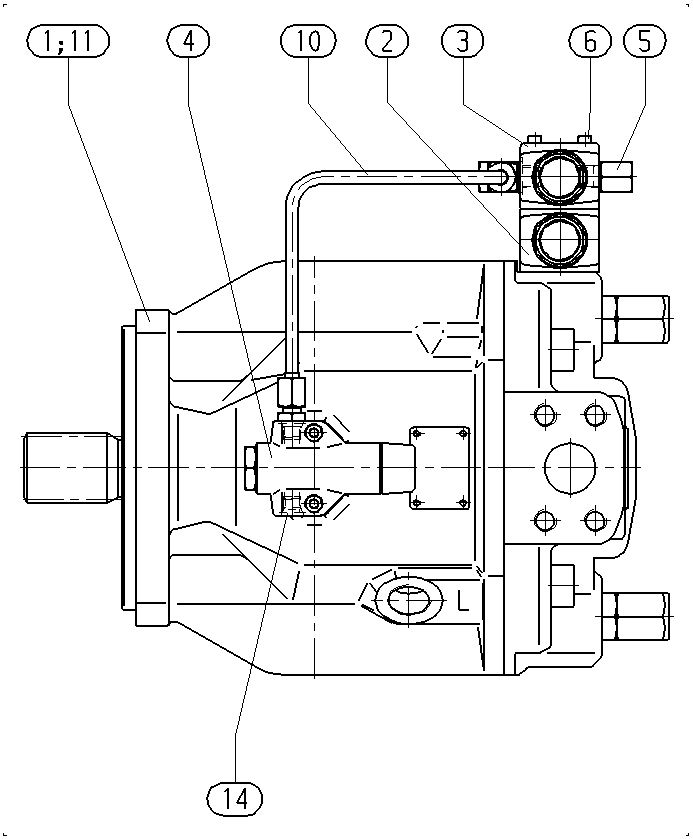

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902420501 | ZESPÓŁ PODSTAWY Assembly parts list →L | 1 | ||
| R910920180 | ZAWÓR REGULACYJNY Assembly parts list →L | 1 | ||
| R910920244 | ZAWÓR REGULACYJNY Assembly parts list →L | 1 | ||
| R902533217 | ZAWÓR REGULACYJNY Assembly parts list →L | 1 | ||
| R910984434 | ADAPTER Assembly parts list →L | 1 | ||
| R910799998 | ŚRUBA Z ŁBEM WALCOWYM | 4 | ||
| R910964726 | ORUROWANIE Assembly parts list →L | 1 | ||
| R902420482 | SCHEMAT ZASILANIA | 1 | ||
| R909154478 | KOREK GWINTOWANY | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
