Unit · BASE UNIT
G A10VEC 60 OV /52XX-VRF -SO548R902420769
Base unit Bosch Rexroth series A10VM, type code GA10VEC60OV/52XX-VRF-SO548, material number R902420769. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 for high torque (R). Mounting flange: special flange; 2 hole (F).
- Number
- R902420769
- Type code
- G A10VEC 60 OV /52XX-VRF -SO548
- Group
- A10VEC 60
- Edition
- 06/2020

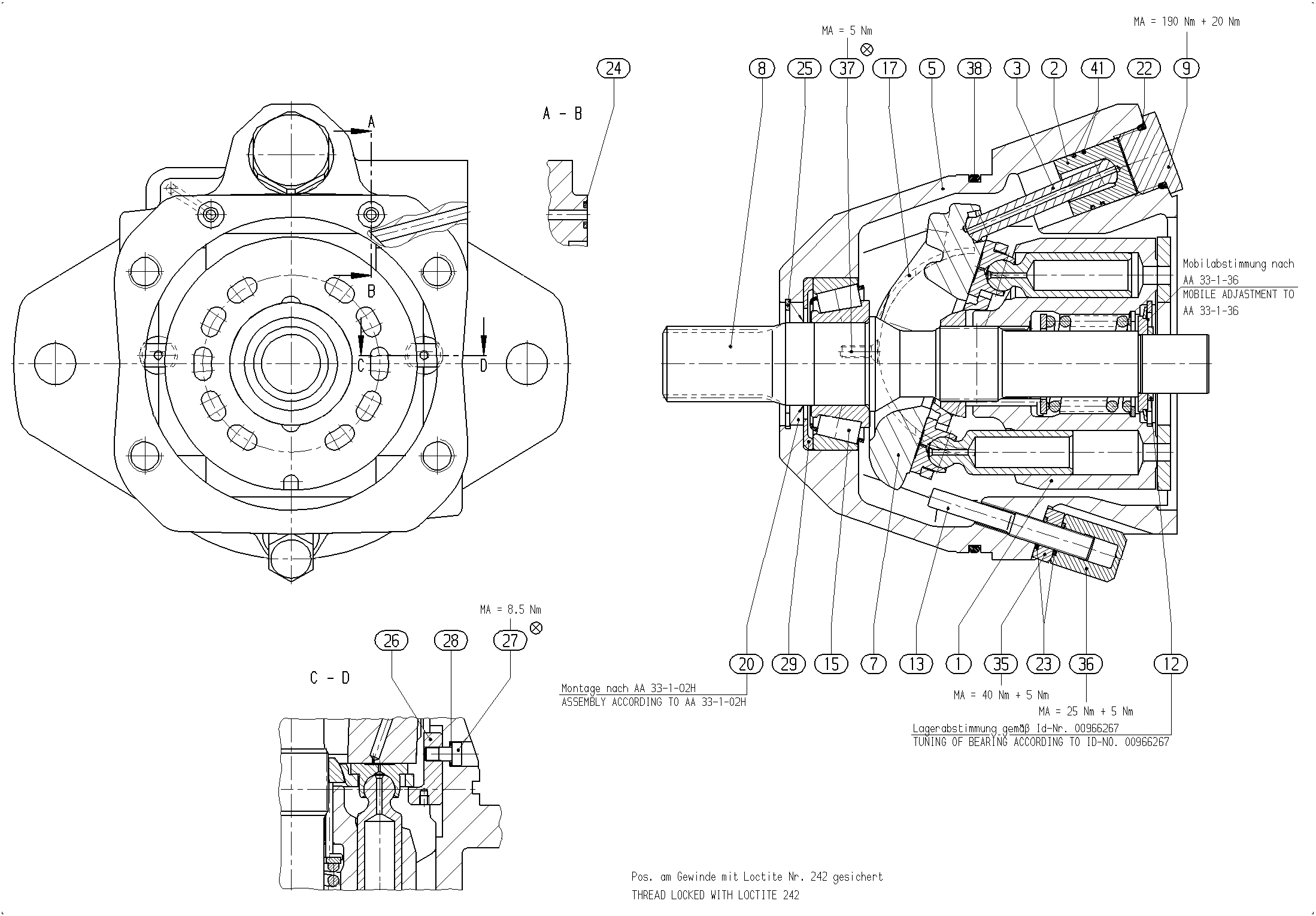

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902413826 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910979311 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902409199 | MOTOR HOUSING | 1 | ||
| R910988665 | SWASH PLATE | 1 | ||
| R902413419 | DRIVE SHAFT | 1 | ||
| R902447586 | SCREW PLUG | 1 | ||
| R910966528 | ADJUSTMENT SHIM | 1 | ||
| R910933408 | STOP SCREW | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R902413637 | BEARING SHELL | 1 | ||
| 18 | R902413636 | BEARING SHELL | 1 | |
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| R910804886 | O-RINGD | 2 | ||
| R910942133 | R-RING | 2 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910989276 | GUSSET | 2 | ||
| R902455540 | FITTING SCREW | 2 | ||
| R910107891 | BONDED SEAL RING | 2 | ||
| R910989235 | STOP RING | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R902601553 | O-RING | 1 | ||
| R909832143 | R-RING | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Size (NG) | 60 | 60 |
| Series | Series 5, index 2 | 52 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 for high torque | R |
| Mounting flange | Special flange; 2 hole | F |
