Unit · CONTROL
V A7V O 250 HD2D /63L-V 02VR902420781
Control Bosch Rexroth series A7VO, type code VA7VO250HD2D/63L-V02V, material number R902420781. Nominal size: NG 250.
- Number
- R902420781
- Type code
- V A7V O 250 HD2D /63L-V 02V
- Group
- A7VO 250
- Edition
- 06/2020

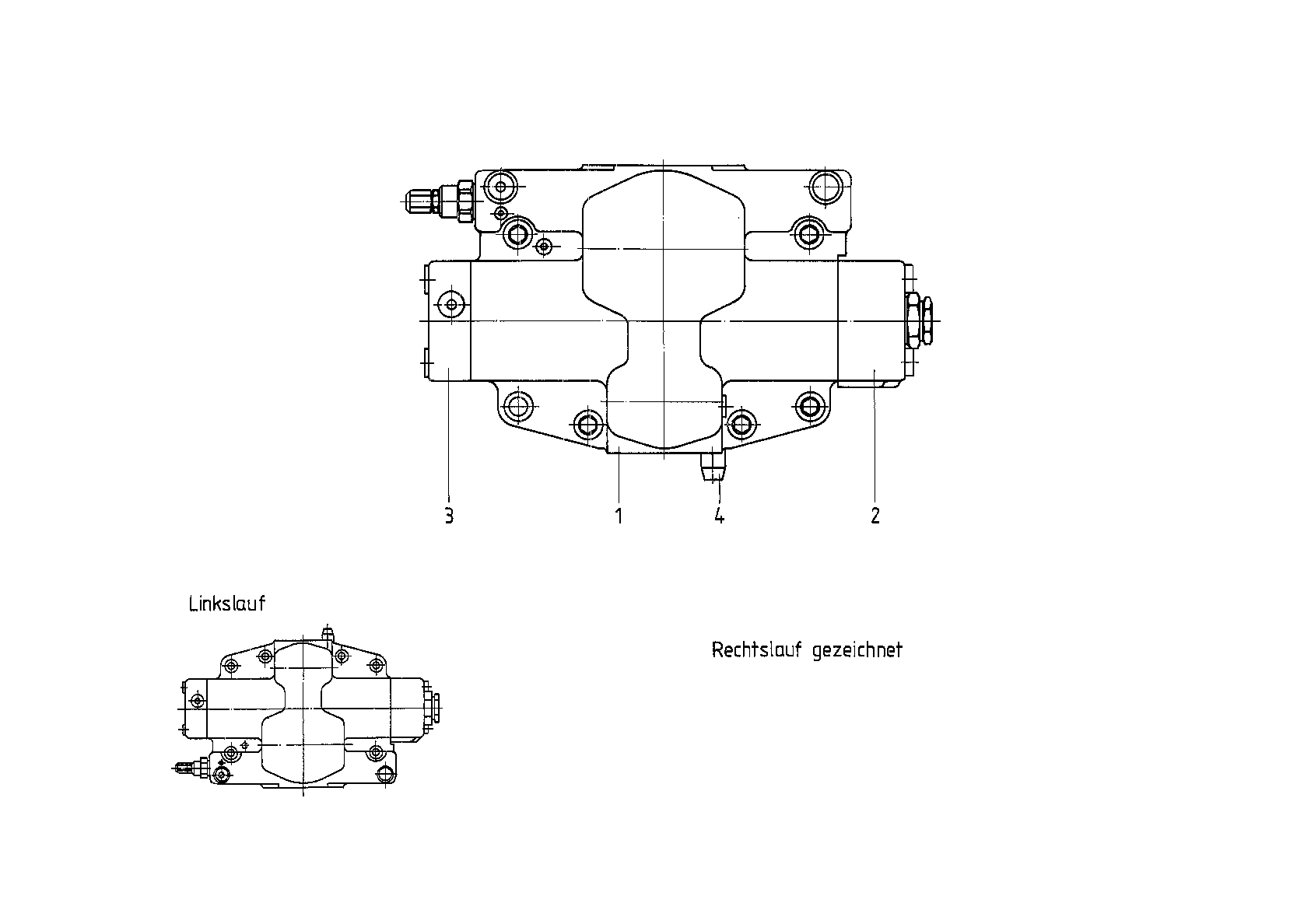

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902420782 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902413883 | CONTROL PART Assembly parts list →L | 1 | ||
| R910934427 | COVER Assembly parts list →L | 1 | ||
| R910937965 | INDICATING DEVICE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 250 | 250 | |
| Hydraulic control, pilot pressure dependent, with integrated pressure control (fixed setting) Δp = 25 bar | HD2D | |
| Series 6, Index 3 | 63 | |
| counter clockwise | L | |
| FKM (Fluoro-rubber) | V | |
| SAE- flanged ports B or A, on opposite side (metric fixing bolts) SAE- flanged port S, on opposite side (metric fixing bolts) | 02 | |
| With optical swivel angle indicator | V |
