Unit · AXIAL-PISTON PUMP

A A10V O 71 DFLR/31R-PSC12N00 -S1828R902420807

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFLR/31R-PSC12N00-S1828, material number R902420807. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 1828.

Number
R902420807
Type code
A A10V O 71 DFLR/31R-PSC12N00 -S1828
Group
A10VO 71
Edition
06/2020

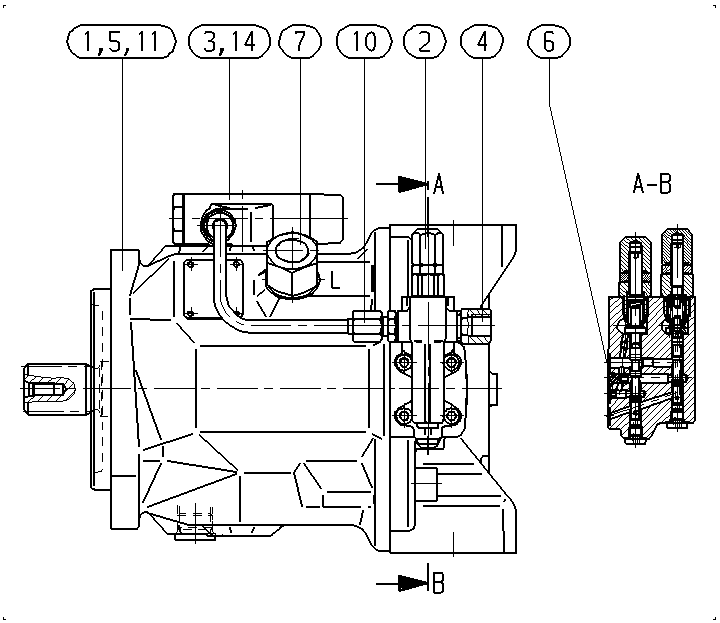

A A10V O 71 DFLR/31R-PSC12N00 -S1828 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902435196BASE UNIT Assembly parts list →L1
R902532410CONTROL VALVE Assembly parts list →L1
R902533217CONTROL VALVE Assembly parts list →L1
R910921653ADAPTER Assembly parts list →L1
R910917868SIDE MARKER RING1
R902540855NOZZLE1
R910792772ADAPTER Assembly parts list →L1
R910963807PIPING Assembly parts list →L1
R902408715POWER DIAGRAM1
R909154478SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)7171
Control devicePressure, flow and power controllerDFLR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive12
Through driveWithout through driveN00

Other versions 47
