Unit · REGULATOR
R A4VS 125,180 DFR /30 -S1304R902420866

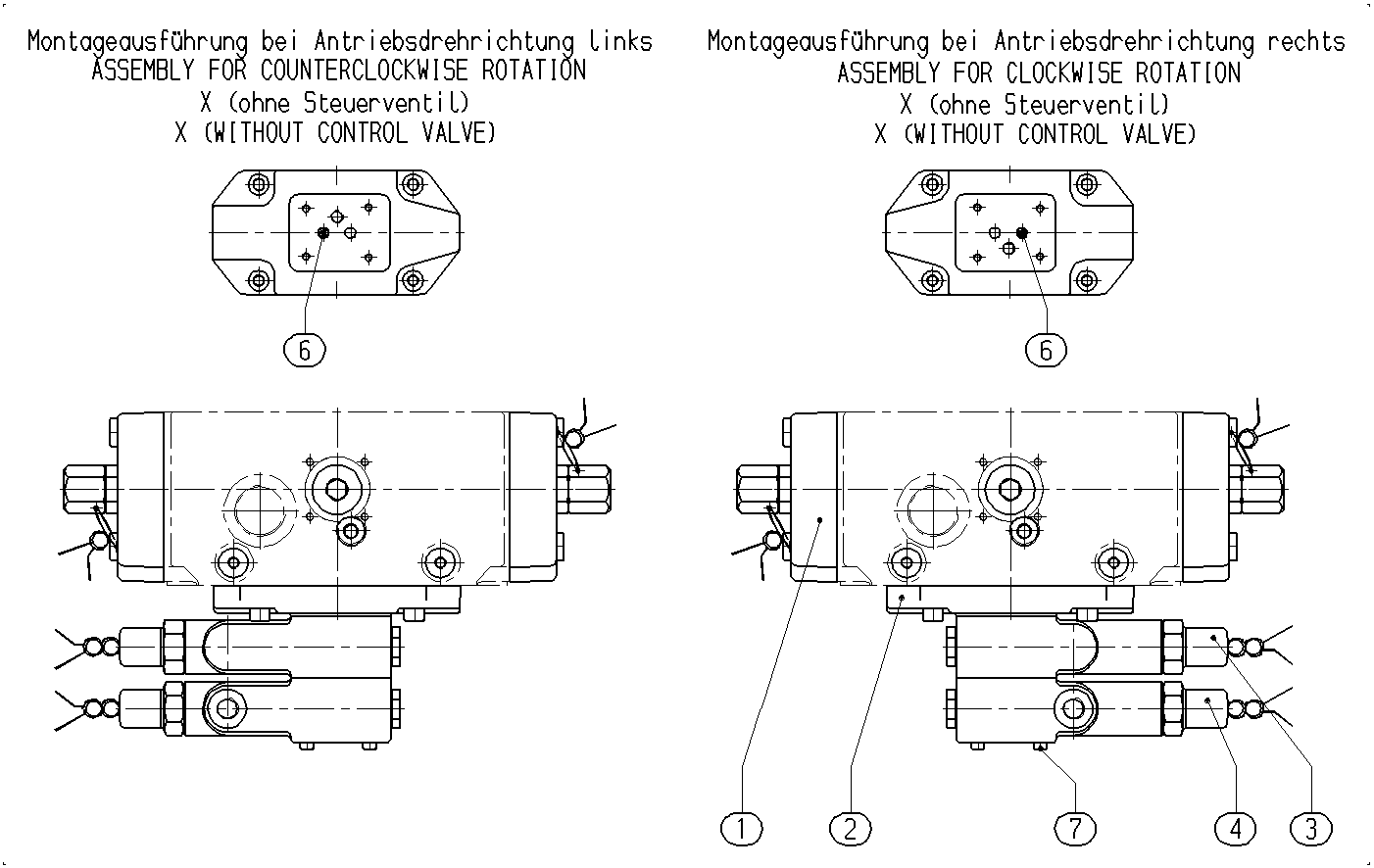

Control Bosch Rexroth series A4VS, type code RA4VS125,180DFR/30-S1304, material number R902420866.
- Number
- R902420866
- Type code
- R A4VS 125,180 DFR /30 -S1304
- Group
- A4VS 125
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902420865 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910976948 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910994544 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902432096 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910436941 | NOZZLE | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 |
