Unit · AXIAL-PISTON PUMP
A A7V O 500 EP2D /63R-VPH02R902420870
Axial piston pump Bosch Rexroth series A7VO, type code AA7VO500EP2D/63R-VPH02, material number R902420870. Nominal size: NG 500.
- Number
- R902420870
- Type code
- A A7V O 500 EP2D /63R-VPH02
- Group
- A7VO 500
- Edition
- 06/2020

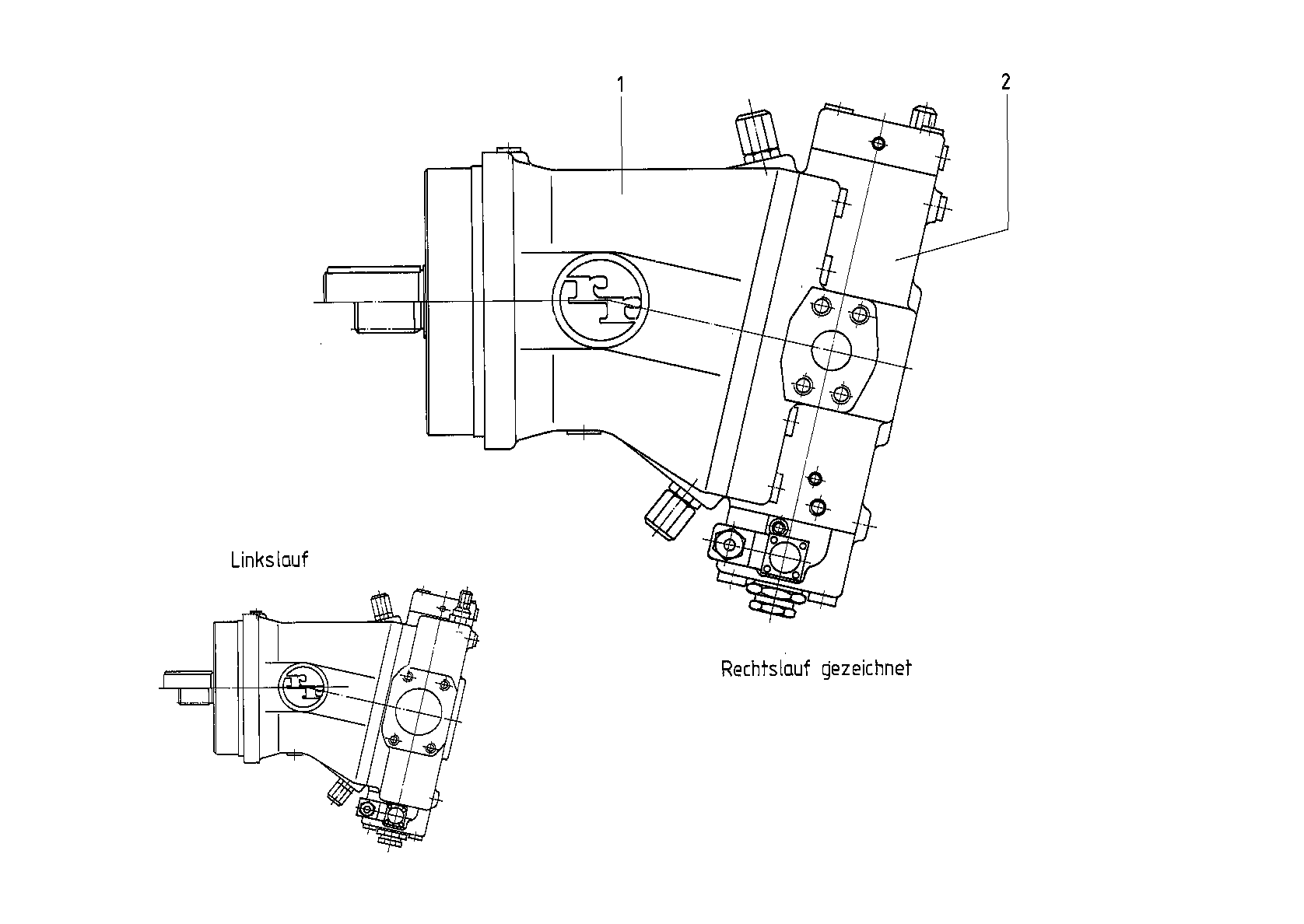

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910964403 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902420871 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 500 | 500 | |
| Hydraulic control, with electric proportional valve, with integrated pressure control (fixed setting) Control voltage 24 V | EP2D | |
| Series 6, Index 3 | 63 | |
| FKM (Fluoro-rubber) | V | |
| Keyed parallel shaft to DIN 6885 | P | |
| 8-hole | H | |
| SAE- flanged ports B or A, on opposite side (metric fixing bolts) SAE- flanged port S, on opposite side (metric fixing bolts) | 02 |
