Unit · AXIAL-PISTON PUMP
ALA10VO45DRG/31R-PSC12K04R902420873
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45DRG/31R-PSC12K04, material number R902420873. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off Hydraulic Remote controlled (DRG). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 101-2 (B) 1 in 15T 16/32DP (K04).
- Number
- R902420873
- Type code
- ALA10VO45DRG/31R-PSC12K04
- Group
- A10VO 45
- Edition
- 07/2020

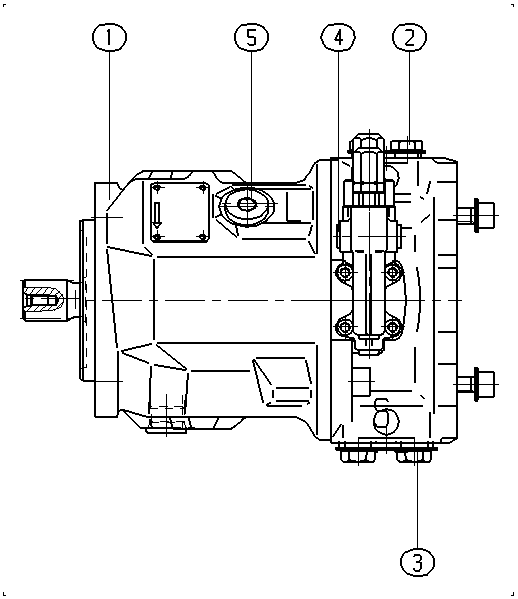

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902420859 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902400586 | FLANGE COVER | 1 | ||
| R902602008 | SEAL SCREW | 1 | ||
| R902602011 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | With pressure cut-off Hydraulic Remote controlled | DRG |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | 101-2 (B) 1 in 15T 16/32DP | K04 |
