Unit · AXIAL-PISTON PUMP
ALA10VO28DFLR/31R-PWC11N00-SO160R902421578
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO28DFLR/31R-PWC11N00-SO160, material number R902421578. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Drive shaft: same as "U", higher torque; limited suitability for through drive; for mounting option (W). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 160.
- Number
- R902421578
- Type code
- ALA10VO28DFLR/31R-PWC11N00-SO160
- Group
- A10VO 28
- Edition
- 06/2020

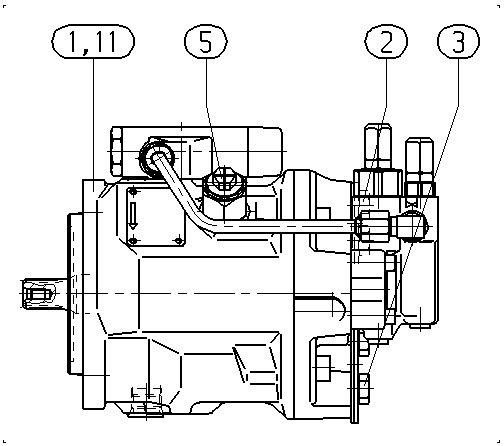

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902421577 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902514872 | FLANGE COVER Assembly parts list →L | 1 | ||
| R902534067 | FLANGE COVER | 1 | ||
| R902602010 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Drive shaft | Same as "U", higher torque; limited suitability for through drive; for mounting option | W |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive | 11 |
| Through drive | Without through drive | N00 |
