Unit · AXIAL-PISTON PUMP
AA10VSO10ED71/52R-PSC64N00TR902421699
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO10ED71/52R-PSC64N00T, material number R902421699. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Drive shaft: splined shaft ISO 3019-1 Standard shaft (S). Mounting flange: based on ISO 3019-1 2-hole (C). Working port: threaded port, UNC Rear (64). Through drive: without through drive (N00).
- Number
- R902421699
- Type code
- AA10VSO10ED71/52R-PSC64N00T
- Group
- A10VSO 10
- Edition
- 06/2020

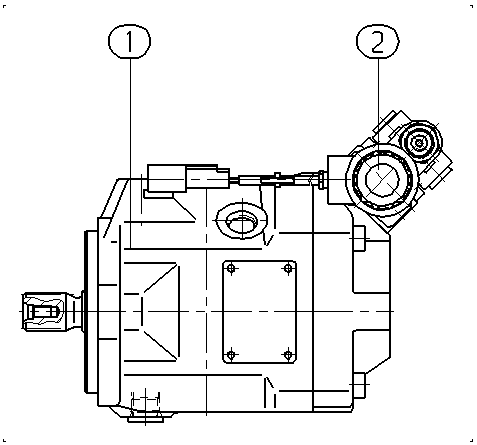

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910990547 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533352 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10VS |
| Operating mode | Pump, open circuit | O |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Drive shaft | Splined shaft ISO 3019-1 Standard shaft | S |
| Mounting flange | Based on ISO 3019-1 2-hole | C |
| Working port | Threaded port, UNC Rear | 64 |
| Through drive | Without through drive | N00 |
