Unit · AXIAL-PISTON PUMP
APA10VO74DFLR/31R-VSC44N00-S1304R902422114
Axial piston pump Bosch Rexroth series A10VO, type code APA10VO74DFLR/31R-VSC44N00-S1304, material number R902422114. Nominal size: NG 74. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: without through drive (N00). Special version no. 1304.
- Number
- R902422114
- Type code
- APA10VO74DFLR/31R-VSC44N00-S1304
- Group
- A10VO 74
- Edition
- 06/2020

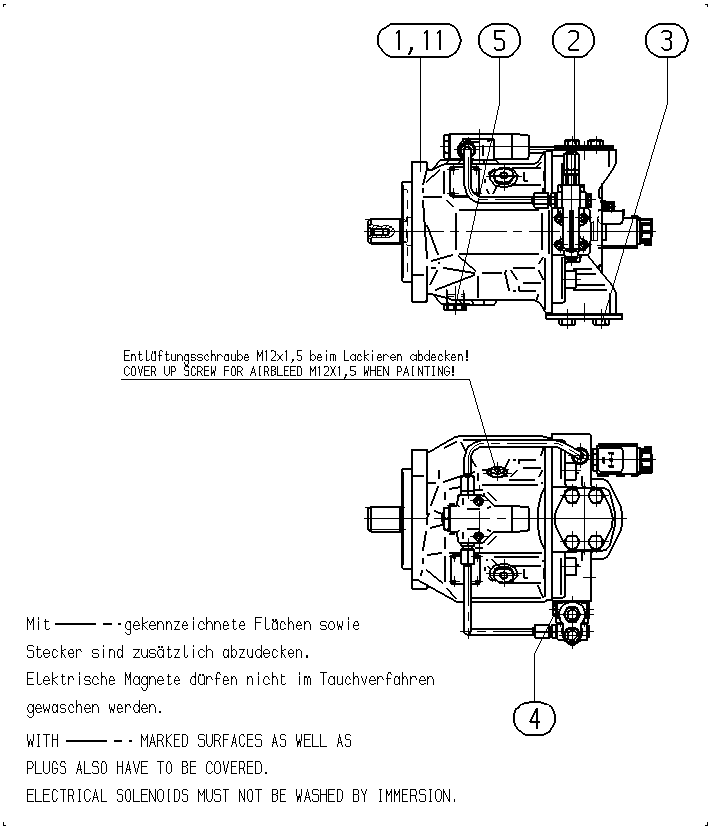

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902422113 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400582 | FLANGE COVER | 1 | ||
| R902400590 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603190 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 74 | 74 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Through drive | Without through drive | N00 |
