Unit · ROTARY GROUP
TW A6V M 500 /63-62W-VP UCDR902422632
Rotary group Bosch Rexroth series A6VM, type code TWA6VM500/63-62W-VPUCD, material number R902422632. Nominal size: NG 500. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: parallel keyed shaft DIN 6885 (P).
- Number
- R902422632
- Type code
- TW A6V M 500 /63-62W-VP UCD
- Group
- A6VM 500
- Edition
- 06/2020

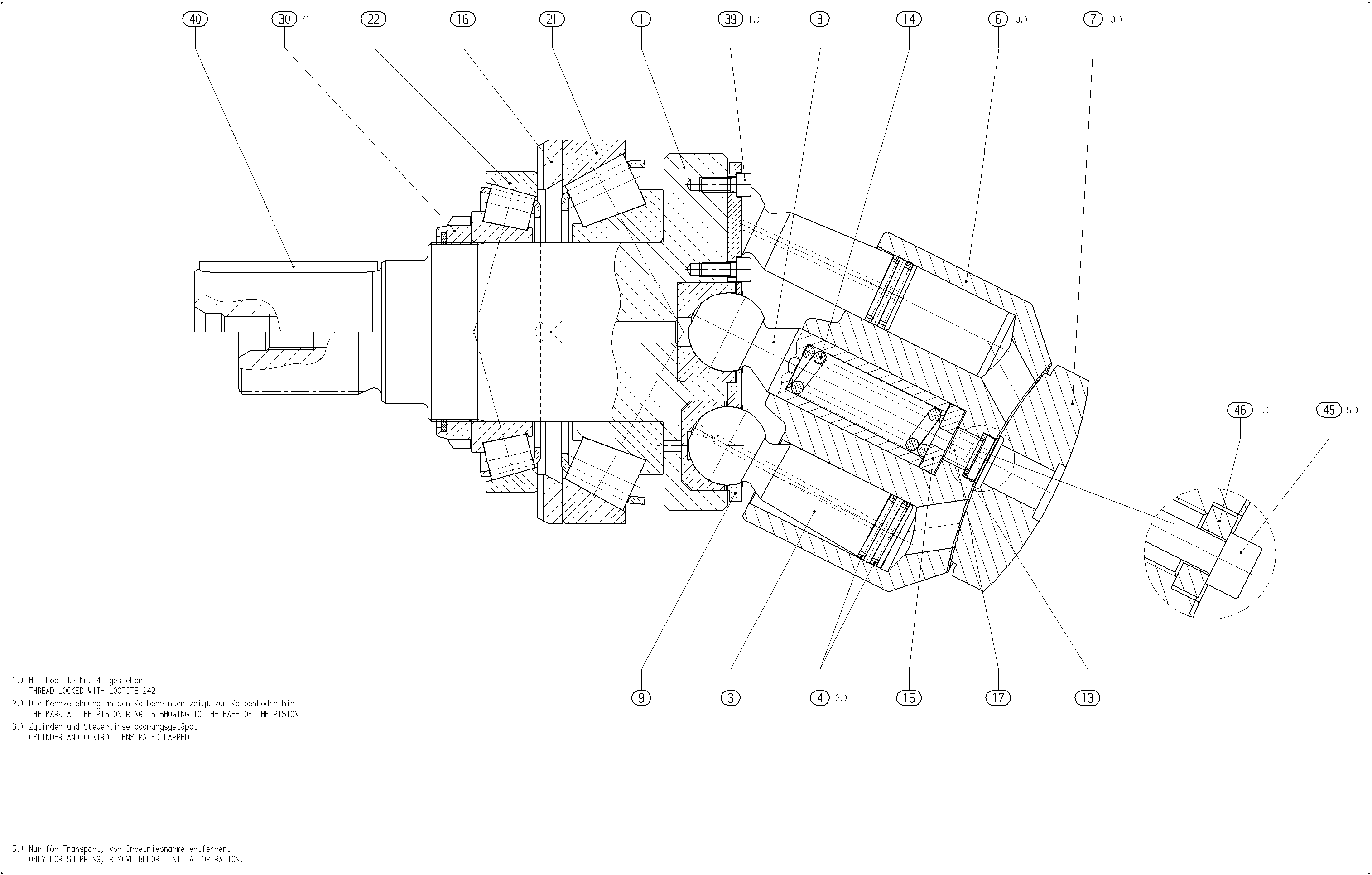

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902422885 | DRIVE FLANGE | 1 | ||
| R902567198 | PISTON | 7 | ||
| R902567616 | CYLINDER | 1 | ||
| R902422642 | CONTROL LENS | 1 | ||
| R902537508 | THRUST JOURNAL | 1 | ||
| R902556372 | RETAINING PLATE | 1 | ||
| R910934208 | SHIM RING | 1 | ||
| R910934496 | COMPRESSION SPRING | 1 | ||
| R910934216 | WASHER | 1 | ||
| R902422630 | SHIM RING | 1 | ||
| R910934224 | SPACER SCREW | 1 | ||
| R902423349 | TAPERED-ROLLER BEARING | 1 | ||
| R902423350 | TAPERED-ROLLER BEARING | 1 | ||
| R902650499 | SLOTTED ROUND NUT | 1 | ||
| R902602715 | PAN-HEAD SCREW | 14 | ||
| R910444707 | PARALLEL KEY | 1 | ||
| R910399957 | SOCKET HEAD CAP SCREW | 1 | ||
| R902411394 | WASHER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 500 | 500 |
| Series | Series 6, index 3 | 63 |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
