Unit · AXIAL-PISTON MOTOR
A A4F M 116 /30W-VZB01 -S1024R902422732
Axial piston motor Bosch Rexroth series A4FM, type code AA4FM116/30W-VZB01-S1024, material number R902422732. Nominal size: NG 116. Axial piston unit: swashplate design, fixed (A4F). Operating mode: motor, open and closed circuit (M). Direction of rotation: viewed on drive shaft (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2; 4-hole (B). Working port: SAE working port A and B at rear, metric fastening threads according to DIN 13 (01). Special version no. 1024.
- Number
- R902422732
- Type code
- A A4F M 116 /30W-VZB01 -S1024
- Group
- A4FM 116
- Edition
- 06/2020

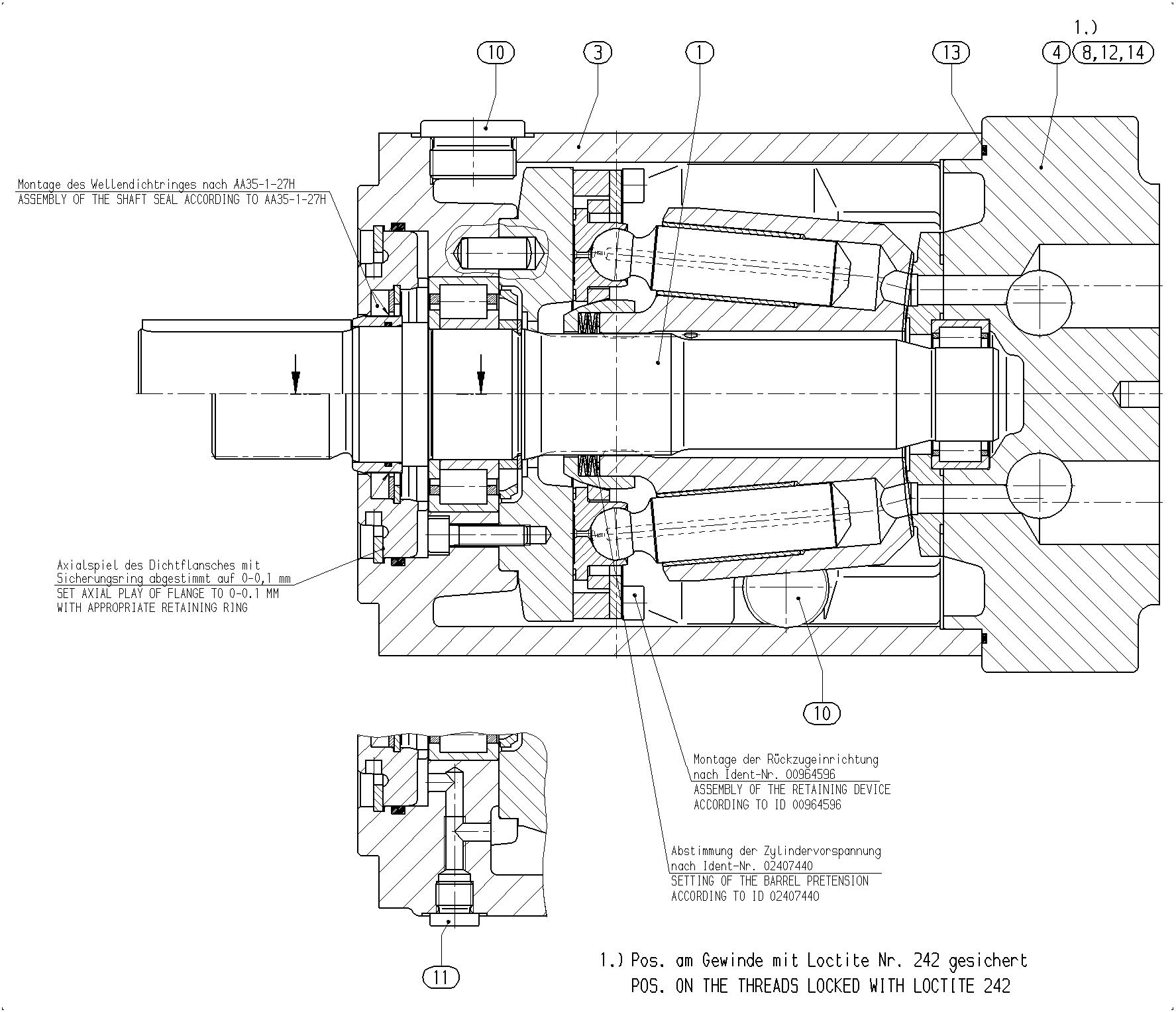

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902422733 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902407436 | PUMP HOUSING | 1 | ||
| R902418130 | CONNECTION PLATE | 1 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156652 | SCREW PLUGD | 2 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R909156984 | SCREW PLUGD | 2 | ||
| R910764728 | O-RINGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 61 | R902421947 | SHIPPING PROTECTION | 2 | |
| 62 | R902602013 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, fixed | A4F |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 116 | 116 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2; 4-hole | B |
| Working port | SAE working port A and B at rear, metric fastening threads according to DIN 13 | 01 |
