Unit · ROTARY GROUP
TWA4FM116M/30W-VZBN00-S1024R902422733

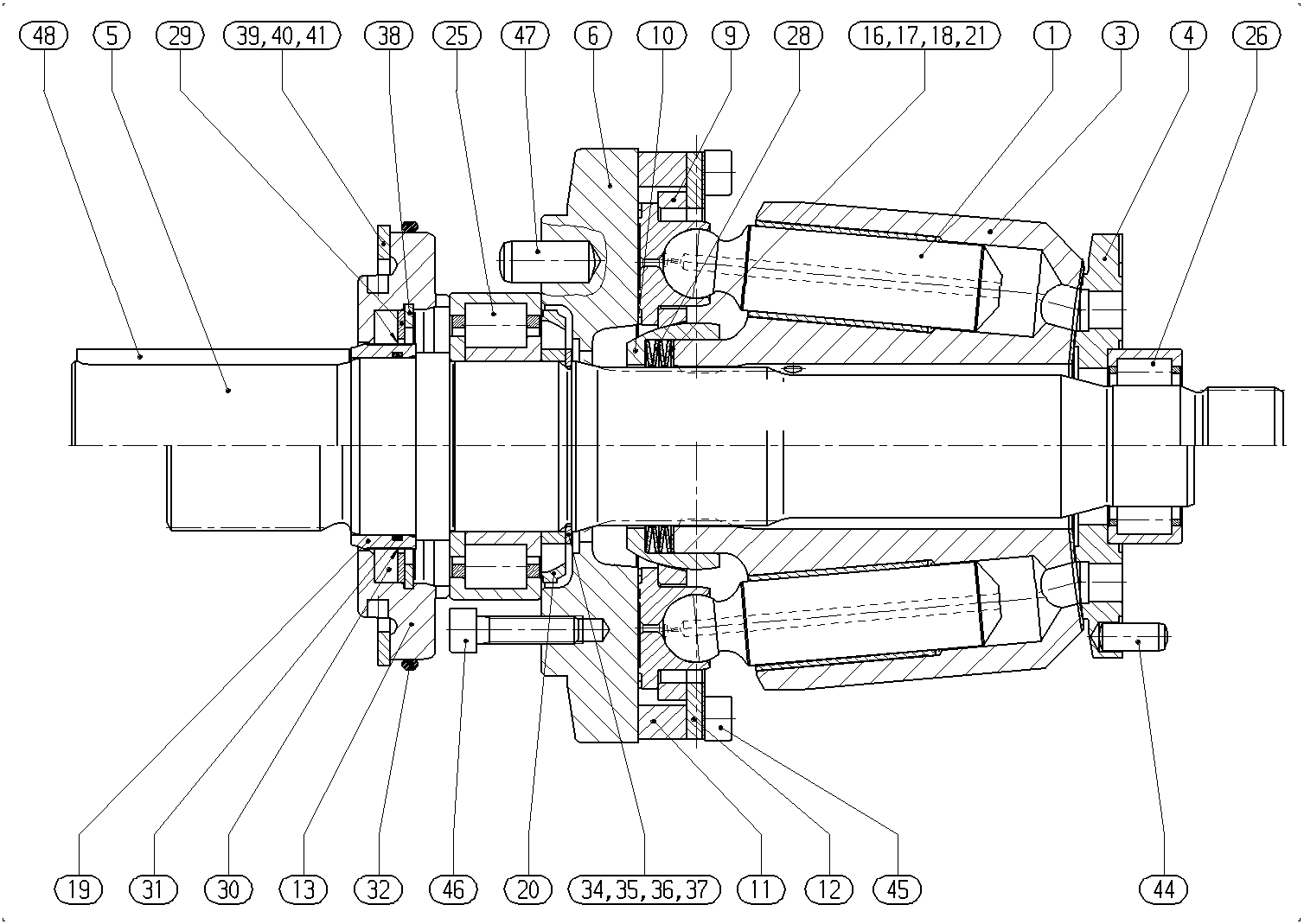

Rotary group Bosch Rexroth series A4FM, type code TWA4FM116M/30W-VZBN00-S1024, material number R902422733. Axial piston unit: swashplate design, fixed (A4F). Operating mode: motor, open and closed circuit (M). Direction of rotation: viewed on drive shaft (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2; 4-hole (B). Special version no. 1024.
- Number
- R902422733
- Type code
- TWA4FM116M/30W-VZBN00-S1024
- Group
- A4FM 116
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902400860 | PISTON PAD | 9 | ||
| R902463686 | CYLINDER | 1 | ||
| R902423032 | DISTRIBUTOR PLATE | 1 | ||
| R902409289 | DRIVE SHAFT | 1 | ||
| R910941702 | CAM PLATE | 1 | ||
| R902534515 | RETAINING PLATE | 1 | ||
| R910803064 | RETAINING BALL | 1 | ||
| R910960661 | SPACER SEGMENT | 2 | ||
| R902570183 | SEGMENT | 2 | ||
| R910993486 | SEALING FLANGE | 1 | ||
| R910846473 | SHIM RING | 1 | ||
| R910846465 | SHIM RING | 1 | ||
| R909078321 | SHIM RING | 1 | ||
| R910991526 | SEAL BUSHING | 1 | ||
| R910993496 | FEED WHEEL | 1 | ||
| R910978477 | CYL. ROLLER BEARING | 1 | ||
| R910978478 | CYL. ROLLER BEARING | 1 | ||
| R909074128 | CUP-SPRING STACK | 1 | ||
| R902400750 | SHIM RING | 1 | ||
| R910963544 | SHAFT SEALING RINGD | 1 | ||
| R902400765 | O-RING | 1 | ||
| R902400818 | O-RINGD | 1 | ||
| R910114677 | RETAINING RING | 1 | ||
| R910991731 | RETAINING RING | 1 | ||
| R910991733 | RETAINING RING | 1 | ||
| R910991734 | RETAINING RING | 1 | ||
| R910116025 | RETAINING RING | 1 | ||
| R910991665 | RETAINING RING | 1 | ||
| R910991666 | RETAINING RING | 1 | ||
| R910991667 | RETAINING RING | 1 | ||
| R913000822 | STRAIGHT PIN | 1 | ||
| R902650864 | SOCKET HEAD CAP SCREW | 4 | ||
| R910231991 | SOCKET HEAD CAP SCREW | 5 | ||
| R910910938 | STRAIGHT PIN | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, fixed | A4F |
| Operating mode | Motor, open and closed circuit | M |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2; 4-hole | B |
