Unit · AXIAL-PISTON PUMP
A A10V O 45 DFR1/31R-PSC12N00 -S1413R902422915
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFR1/31R-PSC12N00-S1413, material number R902422915. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 1413.
- Number
- R902422915
- Type code
- A A10V O 45 DFR1/31R-PSC12N00 -S1413
- Group
- A10VO 45
- Edition
- 06/2020

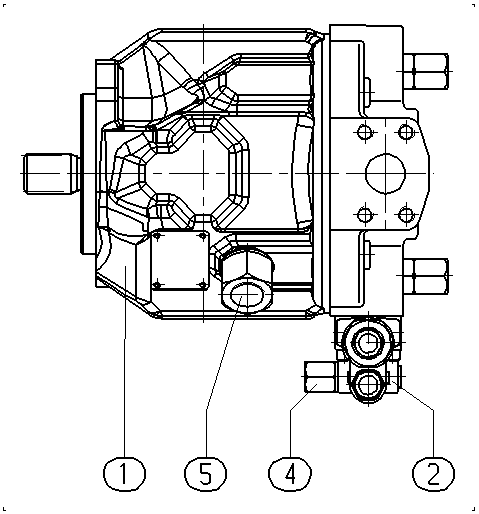

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902422662 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450439 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910921653 | ADAPTER Assembly parts list →L | 1 | ||
| R910792772 | ADAPTER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | Without through drive | N00 |
Other versions 7
- R902439330 A A10V O 45 DFR1/31R-PSC12N00
- R910921876 A A10V O 45 DFR1/31R-PSC12N00
- R902420056 A A10V O 45 DFR1/31R-PSC12N00 -SO 32
- R910990435 A A10V O 45 DFR1/31R-PSC12N00 -SO805
- R902433244 AL A10V O 45 DFR1/31R-PSC12N00
- R902544739 AL A10V O 45 DFR1/31R-PSC12N00
- R910990434 AL A10V O 45 DFR1/31R-PSC12N00 -SO805
