Unit · AXIAL-PISTON PUMP
AL A20V O 60 DFR1/10R-VSD24K52 -SO200R902423470
Axial piston pump Bosch Rexroth series A20VO, type code ALA20VO60DFR1/10R-VSD24K52-SO200, material number R902423470. Nominal size: NG 60. Axial piston unit: swashplate design, variable (back to back version) (A20V). Operating mode: double pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft ISO 3019-1 (S). Mounting flange: ISO 3019-1 4-hole (D). Working port: SAE flanges, two port B and one port S laterally opposite, metric fastening thread (24). Through drive: 82-2 (A) 3/4 in 11T 16/32DP (K52). Special version no. 200.
- Number
- R902423470
- Type code
- AL A20V O 60 DFR1/10R-VSD24K52 -SO200
- Group
- A20VO 60
- Edition
- 06/2020

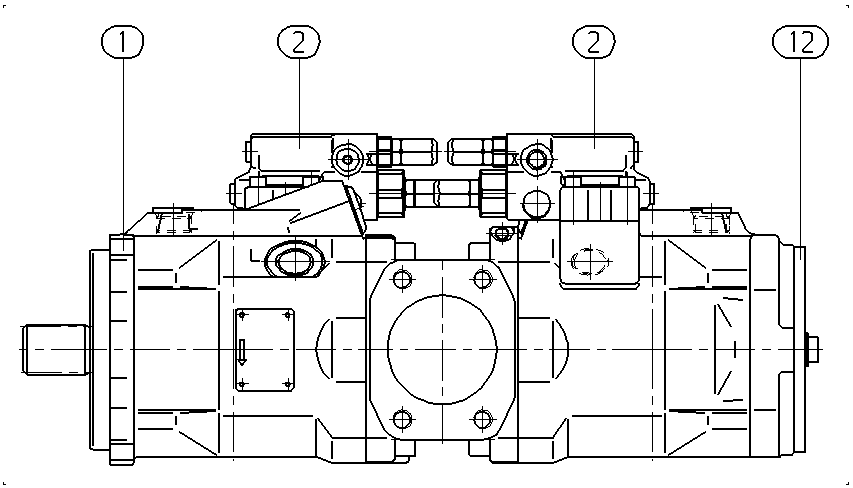

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902413322 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450440 | CONTROL VALVE Assembly parts list →L | 2 | ||
| R902418898 | SEALING COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable (back to back version) | A20V |
| Operating mode | Double pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Series | Series 1, index 0 | 10 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 4-hole | D |
| Working port | SAE flanges, two port B and one port S laterally opposite, metric fastening thread | 24 |
| Through drive | 82-2 (A) 3/4 in 11T 16/32DP | K52 |
