Unit · AXIAL-PISTON PUMP
A A7V O 500 LRDH3/63R-VPH01 -SO 28R902423869
Axial piston pump Bosch Rexroth series A7VO, type code AA7VO500LRDH3/63R-VPH01-SO28, material number R902423869. Nominal size: NG 500. Axial piston unit: bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A7V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off (LRD). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: parallel keyed shaft according to DIN 6885 (P). Port plate for working lines: SAE flange ports A and S at rear (metric fastening thread) (01). Standard / special version: special version (-S).
- Number
- R902423869
- Type code
- A A7V O 500 LRDH3/63R-VPH01 -SO 28
- Group
- A7VO 500
- Edition
- 06/2020

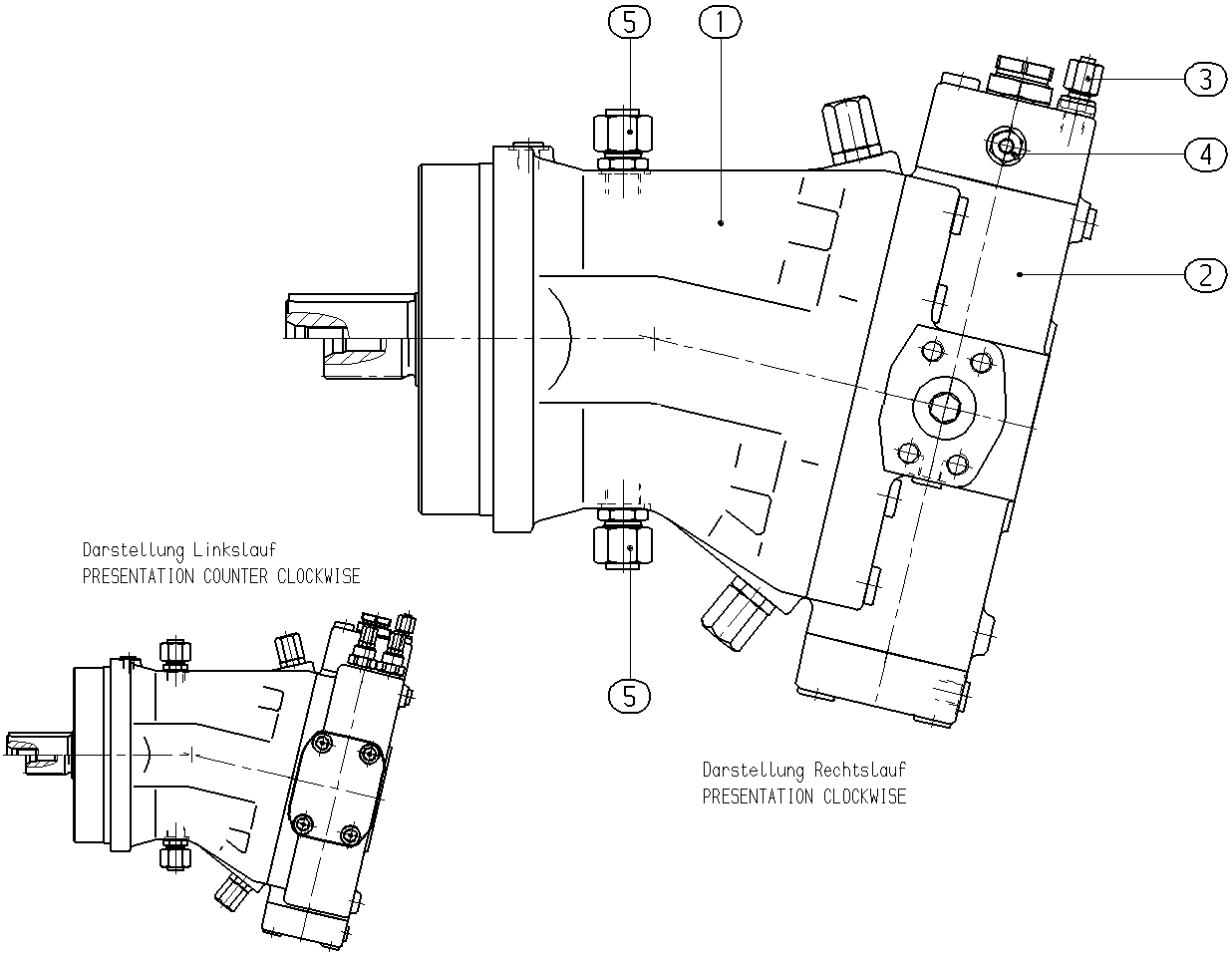

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910964403 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902418918 | CONTROL Assembly parts list →L | 1 | ||
| R910755788 | THREADED FASTENER | 1 | ||
| R910914163 | THREADED FASTENER | 1 | ||
| R910761931 | THREADED FASTENER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A7V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 500 | 500 |
| Control device | with pressure cut-off | LRD |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Parallel keyed shaft according to DIN 6885 | P |
| Port plate for working lines | SAE flange ports A and S at rear (metric fastening thread) | 01 |
| Standard / special version | Special version | -S |
