Unit · AXIAL-PISTON PUMP

AA10VSO18DR/31R-VKC62N00-S1545R902424758

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO18DR/31R-VKC62N00-S1545, material number R902424758. Nominal size: NG 18. Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00). Special version no. 1545.

Number
R902424758
Type code
AA10VSO18DR/31R-VKC62N00-S1545
Group
A10VSO 18
Edition
06/2020

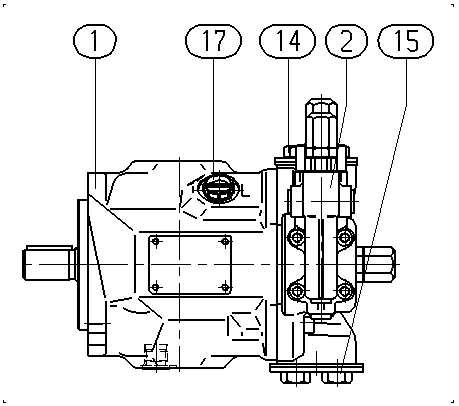

AA10VSO18DR/31R-VKC62N00-S1545 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910930532BASE UNIT Assembly parts list →L1
R902453112CONTROL VALVE Assembly parts list →L1
R902400575FLANGE COVER1
R902400579FLANGE COVER1
R902602015SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Operating modePump, open circuitO
Size (NG)1818
Control devicePressure controller hydraulicDR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftParallel keyed shaft permissible through-drive torque ISO 3019-1K
Mounting flangeISO 3019-1 2-holeC
Working portSAE flange ports according to ISO 6162, UNC fastening thread laterally opposite62
Through driveWithout through driveN00
