Unit · AXIAL-PISTON PUMP
AAA4VSO40HD3/11L-VSD63N00R902425243
Axial piston pump Bosch Rexroth series A4VSO, type code AAA4VSO40HD3/11L-VSD63N00, material number R902425243. Nominal size: NG 40. Axial piston unit: swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) (AA4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) / HFD operation (V). Drive shaft: splined shaft ANSI B92.1a (S). Mounting flange: based on ISO 3019-2 metric 4-hole (D). Working port: standard version fastening thread, port B and S: SAE flange lateral, offset 90°, UNC metric (can only be ordered without through- drive (N00) or with K.. through-drives) (63). Through-drive: without through drive (N00).
- Number
- R902425243
- Type code
- AAA4VSO40HD3/11L-VSD63N00
- Group
- A4VSO 40
- Edition
- 06/2020

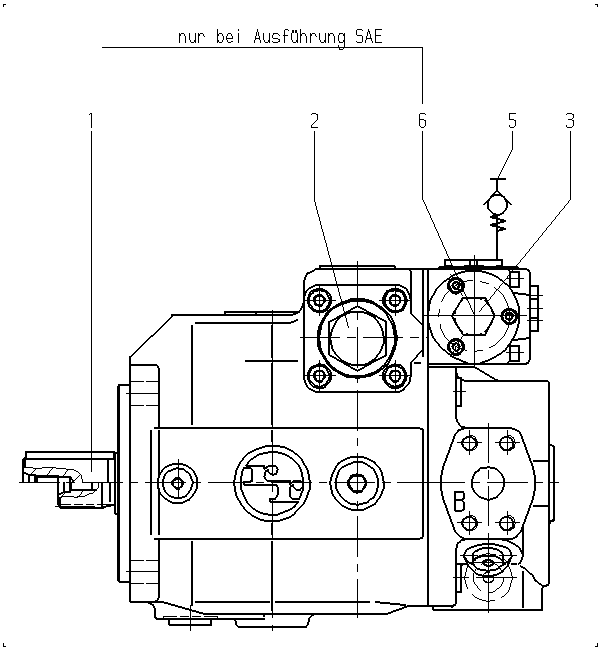

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902425328 | BASE UNIT Assembly parts list →L | 1 | ||
| R902425244 | CONTROL Assembly parts list →L | 1 | ||
| R910933289 | SPRING PACK Assembly parts list →L | 1 | ||
| R910920008 | CHECK VALVE | 1 | ||
| R910984005 | ADAPTER Assembly parts list →L | 1 | ||
| 61 | R902805707 | SHIPPING PROTECTION | 1 | |
| 62 | R902603190 | SEAL SCREW | 1 | |
| 63 | R902421948 | SHIPPING PROTECTION | 1 | |
| 81 | R902602015 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) | AA4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 40 | 40 |
| Directions of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) / HFD operation | V |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | D |
| Working port | Standard version fastening thread, port B and S: SAE flange lateral, offset 90°, UNC metric (can only be ordered without through- drive (N00) or with K.. through-drives) | 63 |
| Through-drive | Without through drive | N00 |
