Unit · AXIAL-PISTON PUMP

A A10V O 71 DFR1/31L-PSC62K68 -S1563R902425503

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFR1/31L-PSC62K68-S1563, material number R902425503. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 1563.

Number: R902425503
Type code: A A10V O 71 DFR1/31L-PSC62K68 -S1563
Group: A10VO 71
Edition: 06/2020

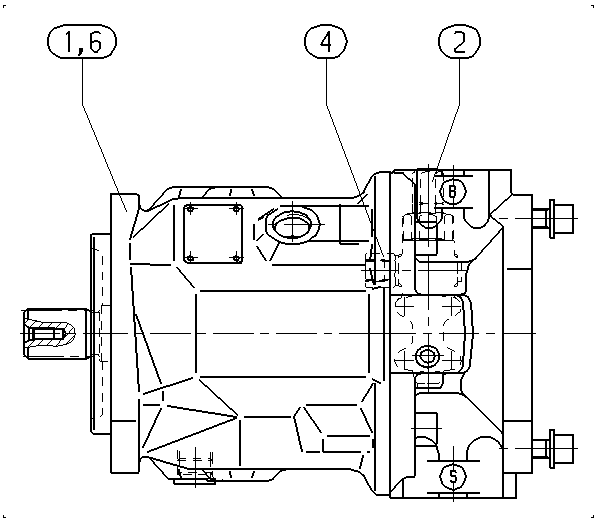

A A10V O 71 DFR1/31L-PSC62K68 -S1563 — Drawing

Pos.	Number	Name	Qty
	R910986237	BASE UNIT Assembly parts list →L	1
	R902450439	CONTROL VALVE Assembly parts list →L	1
	R910921653	ADAPTER Assembly parts list →L	1
	R910917868	SIDE MARKER RING	1
70	R902421946	SHIPPING PROTECTION	1
71	R902421949	SHIPPING PROTECTION	1
72	R902603190	SEAL SCREW	1
73	R902602008	SEAL SCREW	1
74	R902602977	FLANGE COVER	1
75	R909830326	NAMEPLATE	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	71	71
Control device	With flow controller X-T plugged, with flushing function	DFR1
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Counter-clockwise	L
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive	62
Through drive	101-2 (B) 7/8 in 13T 16/32DP	K68

Parameters from the type code

Other versions 5
