Unit · CONTROL
VA4VSO125/180HD1/30X-P-SO97R902425803
Control Bosch Rexroth series A4VSO, type code VA4VSO125/180HD1/30X-P-SO97, material number R902425803. Nominal size: NG 125. Axial piston unit: swashplate design, variable (A4VSO). Control device: pilot pressure characteristics 10...45 bar (1).
- Number
- R902425803
- Type code
- VA4VSO125/180HD1/30X-P-SO97
- Group
- A4VSO 125
- Edition
- 06/2020

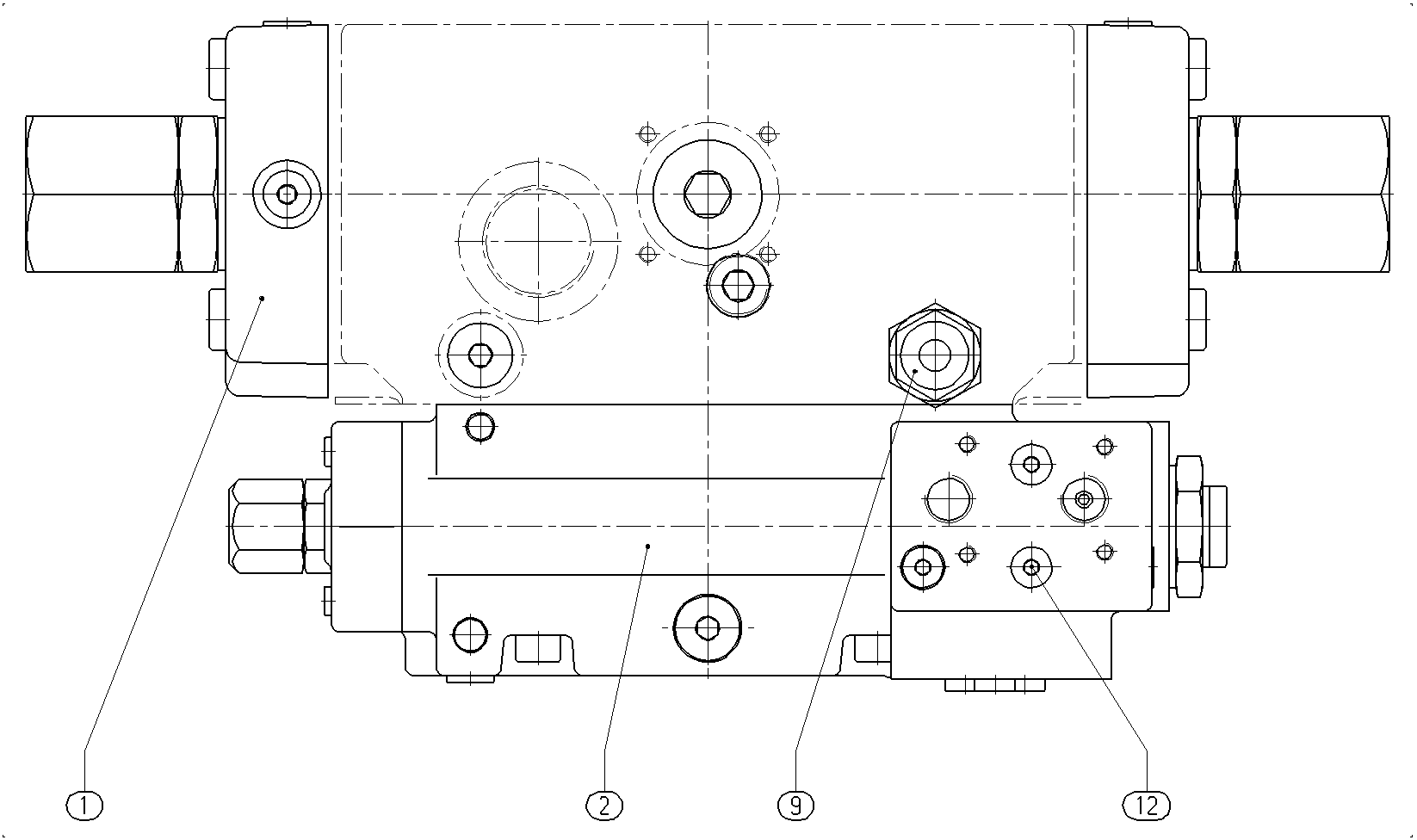

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902425805 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910992873 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910920008 | CHECK VALVE | 1 | ||
| R909154024 | SCREW PLUG | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable | A4VSO |
| Size (NG) | 125 | 125 |
| Control device | Pilot pressure characteristics 10...45 bar | 1 |
| 80 | 80 | |
| Series | Series 3, index 0 | 30 |
