Unit · AXIAL-PISTON PUMP
AA10VO71DFR1/31L-PSC92K68-S1186R902427002
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFR1/31L-PSC92K68-S1186, material number R902427002. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom (92). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 1186.
- Number
- R902427002
- Type code
- AA10VO71DFR1/31L-PSC92K68-S1186
- Group
- A10VO 71
- Edition
- 06/2020

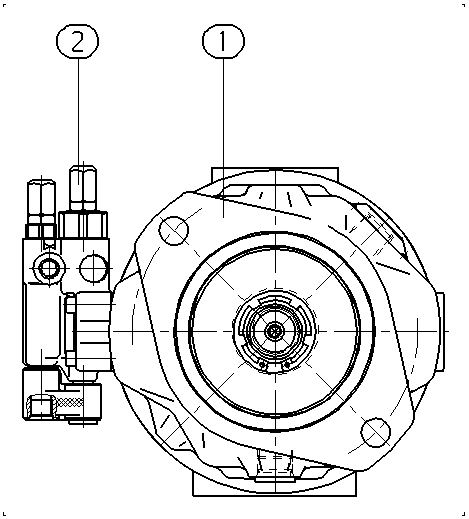

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910999967 | BASE UNIT Assembly parts list →L | 1 | ||
| R902454330 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom | 92 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
