Unit · AXIAL-PISTON PUMP
AA10VO71DFLR/31L-PSC12N00-SO338R902427387
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFLR/31L-PSC12N00-SO338, material number R902427387. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 338.
- Number
- R902427387
- Type code
- AA10VO71DFLR/31L-PSC12N00-SO338
- Group
- A10VO 71
- Edition
- 06/2020

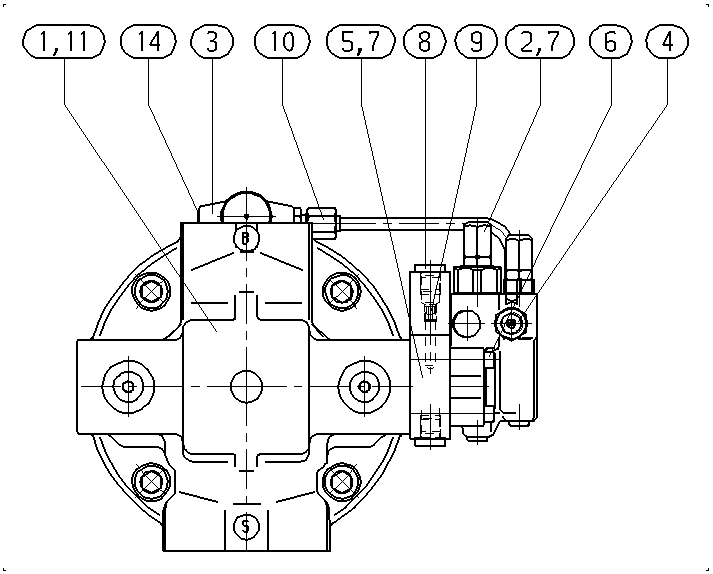

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910961881 | BASE UNIT Assembly parts list →L | 1 | ||
| R902448799 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910932941 | ADAPTER Assembly parts list →L | 1 | ||
| R910945032 | INTERMEDIATE PLATE | 1 | ||
| R910126454 | SOCKET HEAD CAP SCREW | 4 | ||
| R910515078 | O-RING | 3 | ||
| R913011601 | SCREW PLUG | 2 | ||
| R910946752 | NOZZLE | 1 | ||
| R902427388 | PIPING Assembly parts list →L | 1 | ||
| R902412916 | POWER DIAGRAM | 1 | ||
| R909154478 | SCREW PLUG | 1 | ||
| 15 | R902434482 | SEAL | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | Without through drive | N00 |
