Unit · AXIAL-PISTON PUMP
A A4VSO 180 LR2N /30R-PPB13K25R902427449
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO180LR2N/30R-PPB13K25, material number R902427449. Nominal size: NG 180. Axial piston unit: swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) (AA4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: standard version fastening thread, port B and S: SAE flange lateral, offset 90°, 2nd pressure port B with flange plate upon delivery metric (25).
- Number
- R902427449
- Type code
- A A4VSO 180 LR2N /30R-PPB13K25
- Group
- A4VSO 180
- Edition
- 07/2020

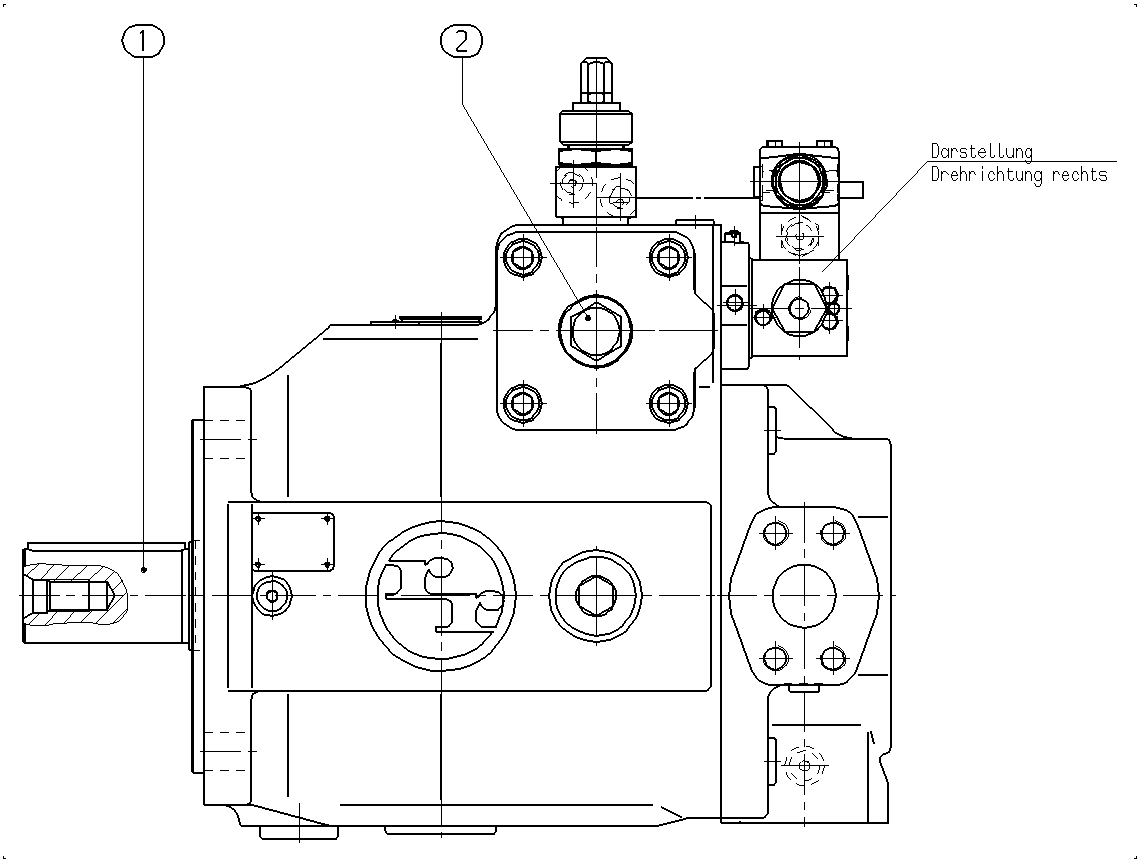

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902424766 | BASE UNIT Assembly parts list →L | 1 | ||
| R910998636 | REGULATOR Assembly parts list →L | 1 | ||
| 61 | R902421947 | SHIPPING PROTECTION | 1 | |
| 62 | R902602013 | SEAL SCREW | 1 | |
| 63 | R902564145 | SHIPPING PROTECTION | 1 | |
| 71 | R902573673 | FLANGE COVER | 1 | |
| 81 | R902602010 | SEAL SCREW | 1 | |
| 82 | R902602008 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) | AA4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 180 | 180 |
| Series | Series 3, index 0 | 30 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | Standard version fastening thread, port B and S: SAE flange lateral, offset 90°, 2nd pressure port B with flange plate upon delivery metric | 25 |
