Unit · AXIAL-PISTON PUMP
ALA10VO45DFLR/31R-PSC12N00-S1101R902427809
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45DFLR/31R-PSC12N00-S1101, material number R902427809. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 1101.
- Number
- R902427809
- Type code
- ALA10VO45DFLR/31R-PSC12N00-S1101
- Group
- A10VO 45
- Edition
- 06/2020

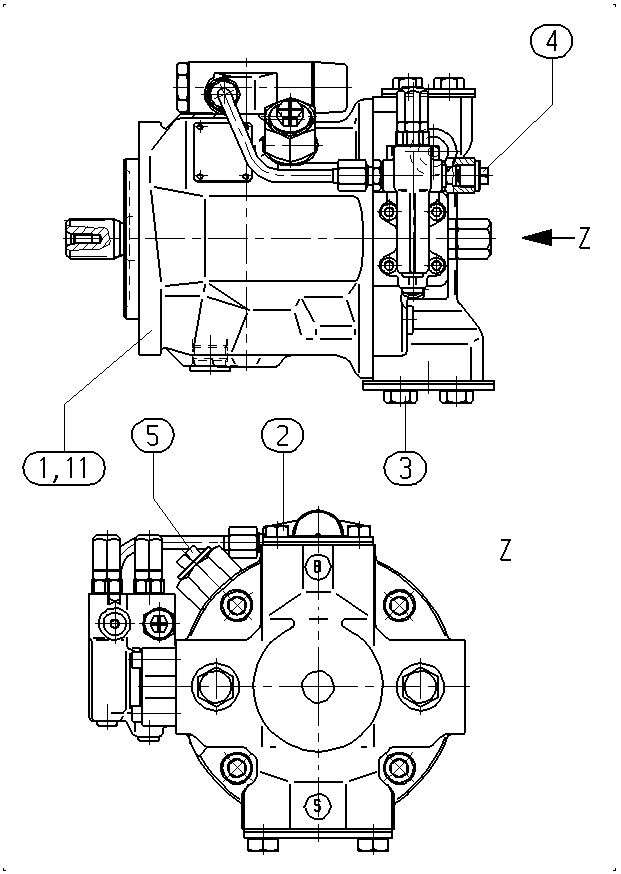

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902427777 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400579 | FLANGE COVER | 1 | ||
| R902400587 | FLANGE COVER | 1 | ||
| R902602008 | SEAL SCREW | 1 | ||
| R902602011 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | Without through drive | N00 |
Other versions 41
- R902412577 A A10V O 45 DFLR/31R-PSC12N00
- R902414885 A A10V O 45 DFLR/31R-PSC12N00
- R902436887 A A10V O 45 DFLR/31R-PSC12N00
- R902438695 A A10V O 45 DFLR/31R-PSC12N00
- R902444368 A A10V O 45 DFLR/31R-PSC12N00
- R910970767 A A10V O 45 DFLR/31R-PSC12N00
- R910983664 A A10V O 45 DFLR/31R-PSC12N00
- R910990276 A A10V O 45 DFLR/31R-PSC12N00
- R902414226 A A10V O 45 DFLR/31R-PSC12N00 -S1275
- R902444476 A A10V O 45 DFLR/31R-PSC12N00 -S1935
- R902413027 A A10V O 45 DFLR/31R-PSC12N00 -SO128
- R910986989 A A10V O 45 DFLR/31R-PSC12N00 -SO128
- R902413706 A A10V O 45 DFLR/31R-PSC12N00 -SO160
- R910935013 A A10V O 45 DFLR/31R-PSC12N00 -SO160
- R910964760 A A10V O 45 DFLR/31R-PSC12N00 -SO456
- R910995818 A A10V O 45 DFLR/31R-PSC12N00 -SO456
- R902417007 A A10V O 45 DFLR/31R-PSC12N00 -SO533
- R910960220 A A10V O 45 DFLR/31R-PSC12N00 -SO533
- R910973710 A A10V O 45 DFLR/31R-PSC12N00 -SO593
- R910984203 A A10V O 45 DFLR/31R-PSC12N00 -SO596
- R910984055 A A10V O 45 DFLR/31R-PSC12N00 -SO681
- R910985341 A A10V O 45 DFLR/31R-PSC12N00 -SO681
- R910989715 A A10V O 45 DFLR/31R-PSC12N00 -SO681
- R902413494 A A10V O 45 DFLR/31R-PSC12N00 -SO696
- R902419615 A A10V O 45 DFLR/31R-PSC12N00 -SO991
- R902420988 A A10V O 45 DFLR/31R-PSC12N00 ES1275
- R902433521 A A10V O 45 DFLR/31R-PSC12N00 ES1275
- R902433510 A A10V O 45 DFLR/31R-PSC12N00 ESO533
- R902433580 A A10V O 45 DFLR/31R-PSC12N00 ESO533
- R902435337 A A10V O 45 DFLR/31R-PSC12N00 ESO533
- R902434306 A A10V O 45 DFLR/31R-PSC12N00 ESO593
- R902433575 A A10V O 45 DFLR/31R-PSC12N00 ESO681
- R902433597 A A10V O 45 DFLR/31R-PSC12N00 ESO681
- R902433526 A A10V O 45 DFLR/31R-PSC12N00 ESO991
- R902443078 AA10VO45DFLR/31R-PSC12N00
- R902443946 AA10VO45DFLR/31R-PSC12N00
- R902427777 AA10VO45DFLR/31R-PSC12N00-S1101
- R902439552 AA10VO45DFLR/31R-PSC12N00-S1935
- R902423606 AA10VO45DFLR/31R-PSC12N00-SO681
- R910986988 AL A10V O 45 DFLR/31R-PSC12N00 -SO128
- R992001378 AL A10V O 45 DFLR/31R-PSC12N00 ESO681
