Unit · AXIAL-PISTON PUMP
AA10VSO10DFR/52R-PKC64N00-S1645R902427921
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO10DFR/52R-PKC64N00-S1645, material number R902427921. Nominal size: NG 10. Operating mode: pump, open circuit (O). Control device: with flow controller X-T open hydraulic (DFR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Through drive: without through drive (N00). Special version no. 1645.
- Number
- R902427921
- Type code
- AA10VSO10DFR/52R-PKC64N00-S1645
- Group
- A10VSO 10
- Edition
- 06/2020

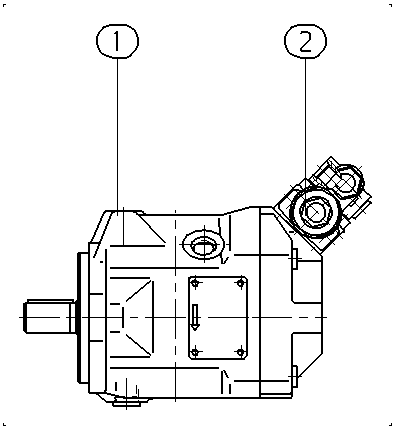

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902434063 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450440 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 10 | 10 |
| Control device | with flow controller X-T open hydraulic | DFR |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Through drive | Without through drive | N00 |
