Unit · AXIAL-PISTON PUMP
AE A10VSO 18 DR /31R-PSC12O60 -S1404R902428110
Axial piston pump Bosch Rexroth series A10VSO, type code AEA10VSO18DR/31R-PSC12O60-S1404, material number R902428110. Nominal size: NG 18. Version: HFA, HFB, HFC hydraulic fluid (E). Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Special version no. 1404.
- Number
- R902428110
- Type code
- AE A10VSO 18 DR /31R-PSC12O60 -S1404
- Group
- A10VSO 18
- Edition
- 07/2020

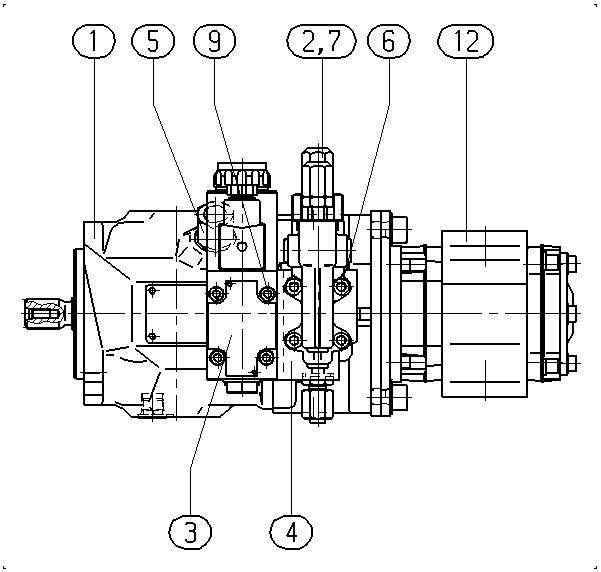

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902427873 | BASE UNIT Assembly parts list →L | 1 | ||
| R910912797 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910996454 | DIRECTIONAL SPOOL VALVE Assembly parts list →L | 1 | ||
| R902472640 | CONTROL BLOCK Assembly parts list →L | 1 | ||
| R910928022 | ADAPTER Assembly parts list →L | 1 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 4 | ||
| R902434482 | SEAL | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R910979258 | GEAR PUMP | 1 | ||
| 61 | R910109606 | SOCKET HEAD CAP SCREW | 2 | |
| 62 | R902650189 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | HFA, HFB, HFC hydraulic fluid | E |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
