Unit · AXIAL-PISTON PUMP

AA10VSO100DFR1/31R-PPA12N00-S1648R902428786

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO100DFR1/31R-PPA12N00-S1648, material number R902428786. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 1648.

Number
R902428786
Type code
AA10VSO100DFR1/31R-PPA12N00-S1648
Group
A10VSO 100
Edition
06/2020

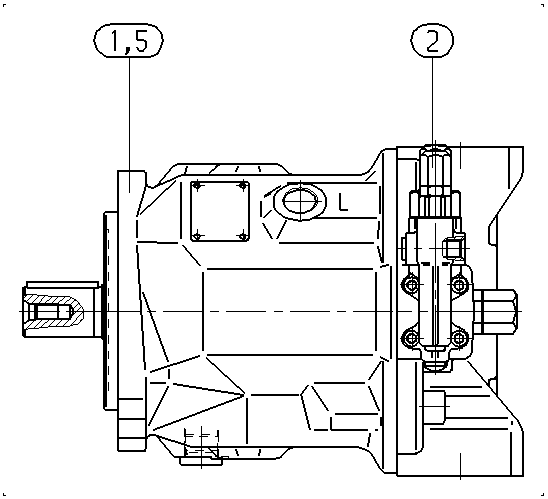

AA10VSO100DFR1/31R-PPA12N00-S1648 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910906868BASE UNIT Assembly parts list →L1
R902460431CONTROL VALVE Assembly parts list →L1
3R910917794SIDE MARKER RING1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)100100
Control devicewith flow controller X-T plugged, with flushing functionDFR1
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialNBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluidP
Drive shaftParallel keyed shaft DIN 6885 permissible through-drive torqueP
Mounting flangeISO 3019-2 2-holeA
Working portSAE flange ports according to ISO 6162, metric fastening thread laterally opposite12
Through driveWithout through driveN00

Other versions 17
