Unit · BASE UNIT
G A10VSC 28 DFE /31L-VSAXXN00 LR -S1082R902429061
Base unit Bosch Rexroth series A10VSC, type code GA10VSC28DFE/31L-VSAXXN00LR-S1082, material number R902429061.
- Number
- R902429061
- Type code
- G A10VSC 28 DFE /31L-VSAXXN00 LR -S1082
- Group
- A10VSC 28
- Edition
- 06/2020

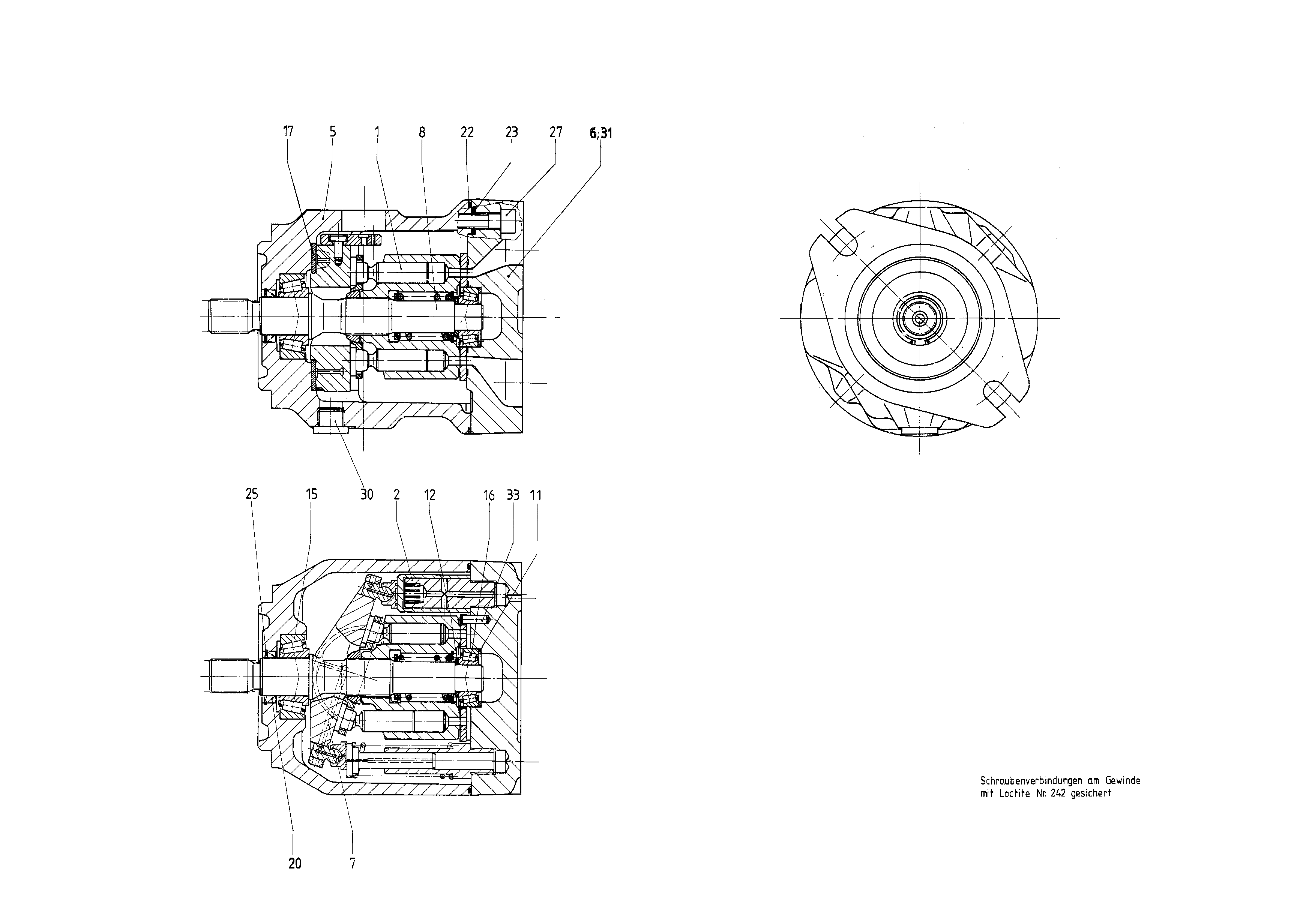

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902439594 | ROTARY GROUP Assembly parts list →L | 1 | |
| R910935918 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| 5 | R902550220 | PUMP HOUSING | 1 | |
| 6 | R902428846 | CONNECTION PLATE | 1 | |
| R910961003 | SWASH PLATE | 1 | ||
| 8 | R902417366 | DRIVE SHAFT | 1 | |
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| 14 | R910987890 | STOP RING | 1 | |
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| 16 | R902438110 | TAPERED-ROLLER BEARING | 1 | |
| R910902778 | BEARING SHELL | 2 | ||
| R910988019 | SHAFT SEALING RINGD | 1 | ||
| R910976090 | O-RINGD | 1 | ||
| R913052104 | R-RINGD | 4 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910121266 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156651 | SCREW PLUGD | 2 | ||
| 33 | R902533908 | STRAIGHT PIN | 1 |
