Unit · BASE UNIT
GEA4VSO71M/10R-VZB13N00R902429400
Base unit Bosch Rexroth series A4VSO, type code GEA4VSO71M/10R-VZB13N00, material number R902429400. Hydraulic fluid: HFA, HFB and HFC hydraulic fluids Only with sealing material NBR nitrile rubber and shaft seal PTFE. (E). Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum (A4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) / HFD operation (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: port B and S: SAE flange lateral, offset 90°, metric fastening thread (can only be ordered without through-drive (N00) or with K.. through-drives) (13). Through-drive: without through drive (N00).
- Number
- R902429400
- Type code
- GEA4VSO71M/10R-VZB13N00
- Group
- A4VSO 71
- Edition
- 06/2020

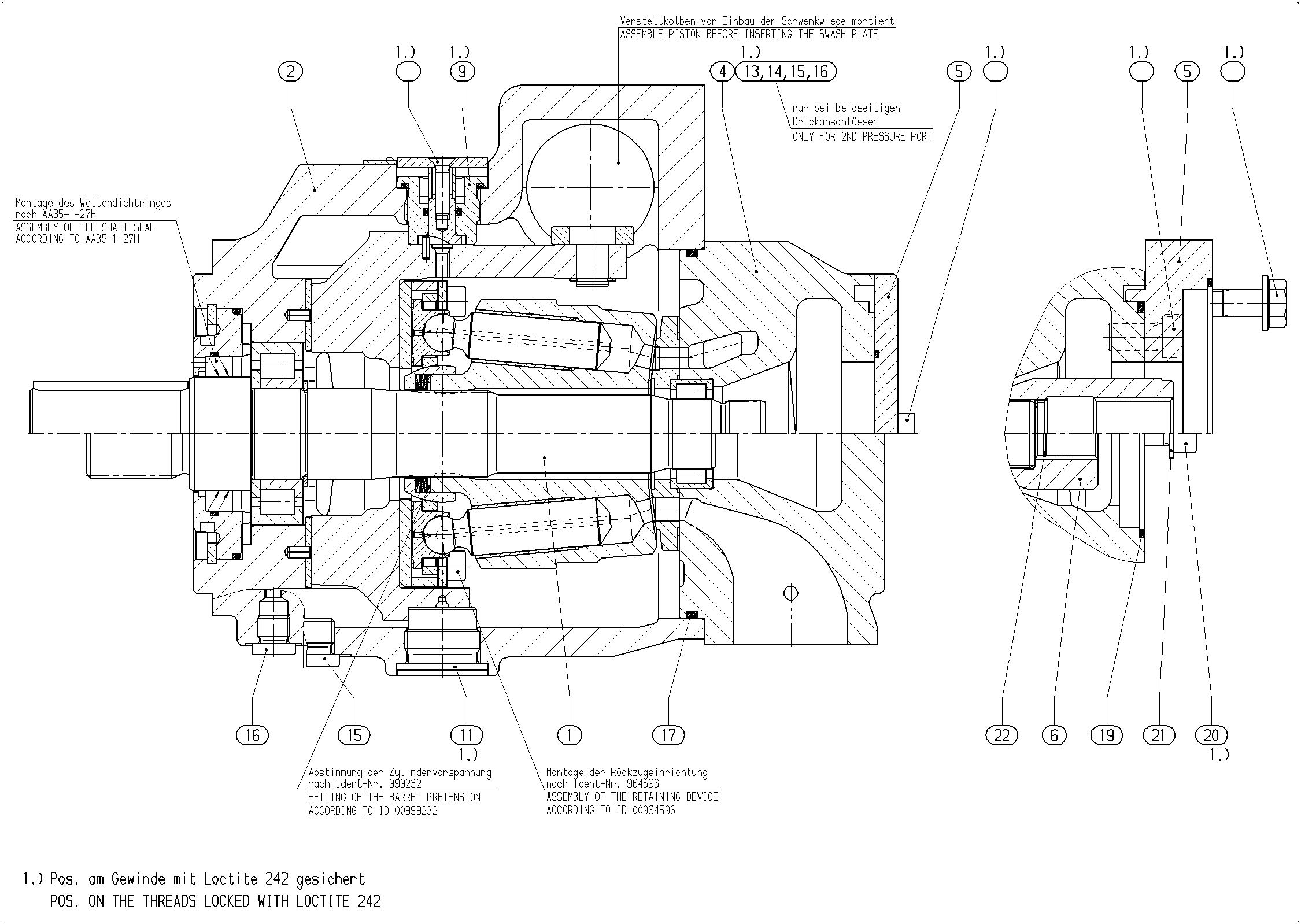

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902423705 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910900052 | CONNECTION PLATE | 1 | ||
| R910929468 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910929476 | STUD BOLT Assembly parts list →L | 1 | ||
| R910402303 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156984 | SCREW PLUGD | 4 | ||
| R909153930 | SCREW PLUGD | 3 | ||
| R910929999 | O-RINGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Hydraulic fluid | HFA, HFB and HFC hydraulic fluids Only with sealing material NBR nitrile rubber and shaft seal PTFE. | E |
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum | A4VS |
| Operating mode | Pump, open circuit | O |
| Series | Series 1, index 0 (series 1, index 1, only for control HD and EP) | 10 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) / HFD operation | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | Port B and S: SAE flange lateral, offset 90°, metric fastening thread (can only be ordered without through-drive (N00) or with K.. through-drives) | 13 |
| Through-drive | Without through drive | N00 |
