Unit · AXIAL-PISTON MOTOR
G A6V M 500 /63W2-VZHDR902429651
Axial piston motor Bosch Rexroth series A6VM, type code GA6VM500/63W2-VZHD, material number R902429651. Nominal size: NG 500. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Direction of rotation: viewed on drive shaft variable (W). Setting ranges for displacement: vg min > 0.4 Vg max to 0.8 Vg max Vg max = Vg max to 0.8 Vg max (2). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 8-hole (H).
- Number
- R902429651
- Type code
- G A6V M 500 /63W2-VZHD
- Group
- A6VM 500
- Edition
- 06/2020

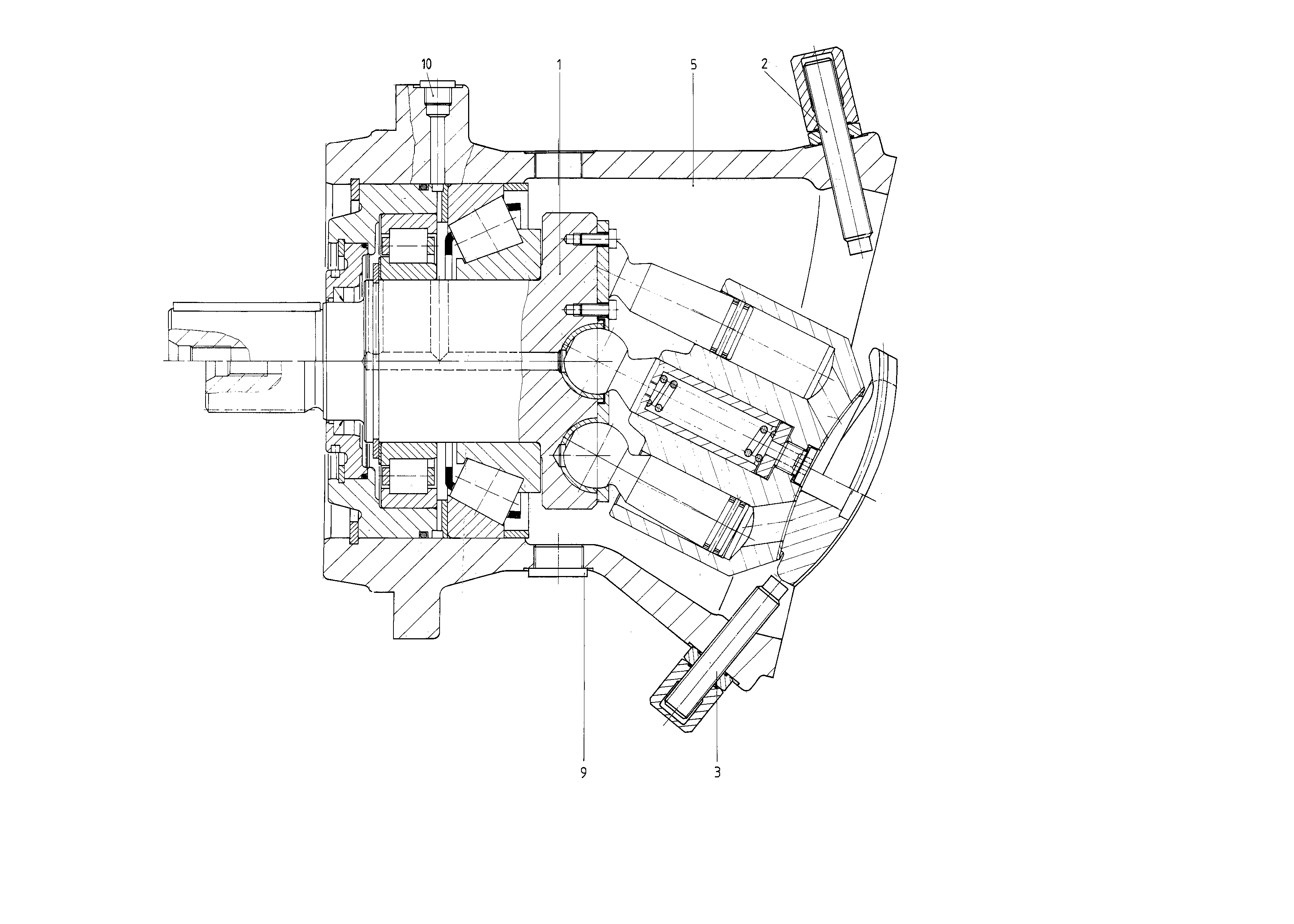

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902411862 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910933671 | ADJUSTING PART Assembly parts list →L | 1 | |
| 3 | R910933667 | ADJUSTING PART Assembly parts list →L | 1 | |
| 5 | R902468572 | HOUSING | 1 | |
| 9 | R909156652 | SCREW PLUGD | 1 | |
| 10 | R909156651 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 500 | 500 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Setting ranges for displacement | Vg min > 0.4 Vg max to 0.8 Vg max Vg max = Vg max to 0.8 Vg max | 2 |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 8-hole | H |
