Unit · ROTARY GROUP
TWEA4VSO40M/10L-VZBK00R902429763
Rotary group Bosch Rexroth series A4VSO, type code TWEA4VSO40M/10L-VZBK00, material number R902429763. Nominal size: NG 40. Hydraulic fluid: HFA, HFB and HFC hydraulic fluids Only with sealing material NBR nitrile rubber and shaft seal PTFE. (E). Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) Metric (A4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) / HFD operation (V). Drive shaft: splined shaft DIN 5480 (Z).
- Number
- R902429763
- Type code
- TWEA4VSO40M/10L-VZBK00
- Group
- A4VSO 40
- Edition
- 06/2020

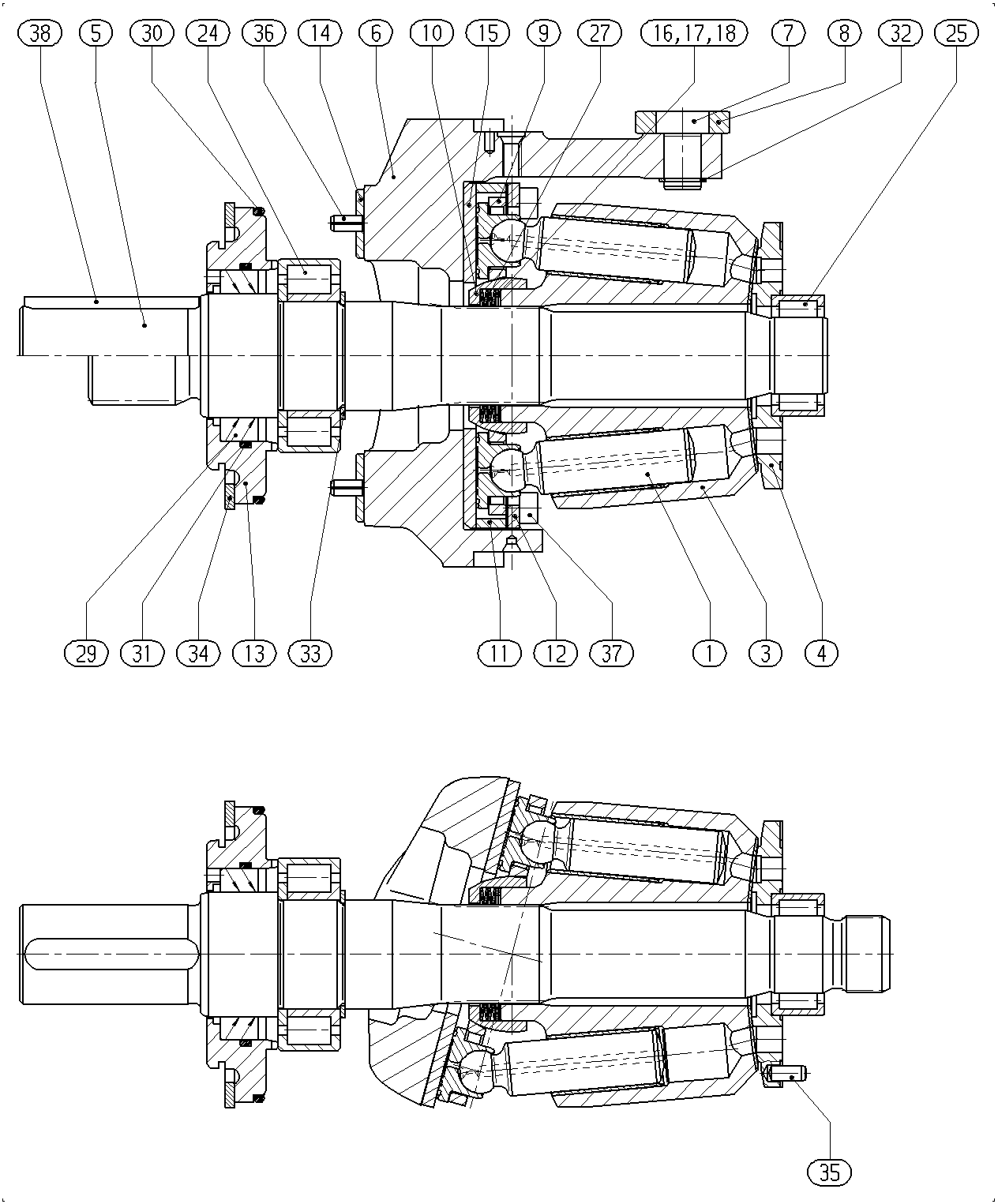

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902408268 | PISTON PAD | 9 | ||
| R902463264 | CYLINDER | 1 | ||
| R910942040 | DISTRIBUTOR PLATE | 1 | ||
| R902409161 | DRIVE SHAFT | 1 | ||
| R910944149 | SWASH PLATE | 1 | ||
| R910943967 | DRIVER PIVOT | 1 | ||
| R910944424 | SLIDER | 1 | ||
| R910944289 | RETAINING PLATE | 1 | ||
| R909426452 | RETAINING BALL | 1 | ||
| R910944327 | SPACER SEGMENT | 2 | ||
| R902570167 | SEGMENT | 2 | ||
| R910973773 | SEALING FLANGE | 1 | ||
| R910989439 | BEARING SHELL | 2 | ||
| R910944351 | SLIDING DISC | 1 | ||
| R909078313 | SHIM RING | 1 | ||
| R909078314 | SHIM RING | 1 | ||
| R910844306 | SHIM RING | 1 | ||
| R910960735 | CYL. ROLLER BEARING | 1 | ||
| R909831337 | CYL. ROLLER BEARING | 1 | ||
| R909074125 | CUP-SPRING STACK | 1 | ||
| R910967770 | SHAFT SEALING RINGD | 1 | ||
| R910904264 | O-RINGD | 1 | ||
| R910824801 | O-RINGD | 1 | ||
| R910105724 | RETAINING RING | 1 | ||
| R909083360 | RETAINING RING | 1 | ||
| R910106089 | RETAINING RING | 1 | ||
| R902651014 | STRAIGHT PIN | 1 | ||
| R910941972 | CLAMPING SLEEVE | 2 | ||
| R909831330 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Hydraulic fluid | HFA, HFB and HFC hydraulic fluids Only with sealing material NBR nitrile rubber and shaft seal PTFE. | E |
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) Metric | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 40 | 40 |
| Series | Series 1, index 0 (series 1, index 1, only for control HD and EP) | 10 |
| Directions of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) / HFD operation | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Through-drive | 00 | 00 |
