Unit · AXIAL-PISTON PUMP

A A10V O 71 DFR1/31R-PSC62K68 -S1186R902430705

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFR1/31R-PSC62K68-S1186, material number R902430705. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 1186.

Number: R902430705
Type code: A A10V O 71 DFR1/31R-PSC62K68 -S1186
Group: A10VO 71
Edition: 06/2020

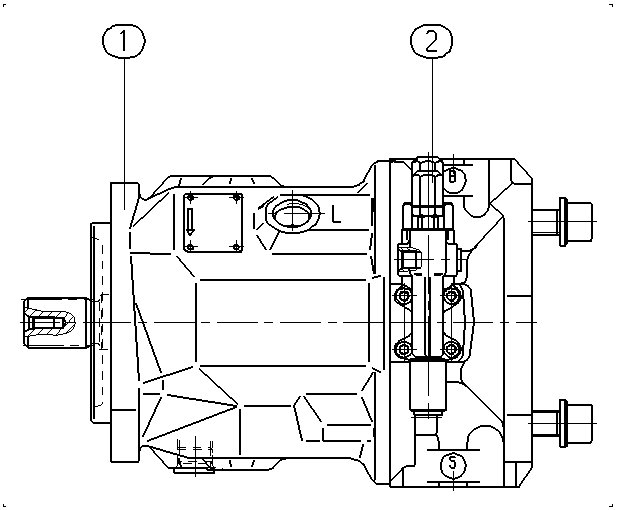

A A10V O 71 DFR1/31R-PSC62K68 -S1186 — Drawing

Pos.	Number	Name	Qty	Add to inquiry
	R910949076	BASE UNIT Assembly parts list →L	1
	R902454330	CONTROL VALVE Assembly parts list →L	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	71	71
Control device	With flow controller X-T plugged, with flushing function	DFR1
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive	62
Through drive	101-2 (B) 7/8 in 13T 16/32DP	K68

Parameters from the type code

Other versions 8
