Unit · AXIAL-PISTON PUMP
APA10VO140ED72/31L-VSD12K01H-SO679R902430762
Axial piston pump Bosch Rexroth series A10VO, type code APA10VO140ED72/31L-VSD12K01H-SO679, material number R902430762. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off Electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Connector for solenoids: 14 With electric swivel angle sensor PAL Ratiometric Power supply U = 5V DC (H). Special version no. 679.
- Number
- R902430762
- Type code
- APA10VO140ED72/31L-VSD12K01H-SO679
- Group
- A10VO 140
- Edition
- 06/2020

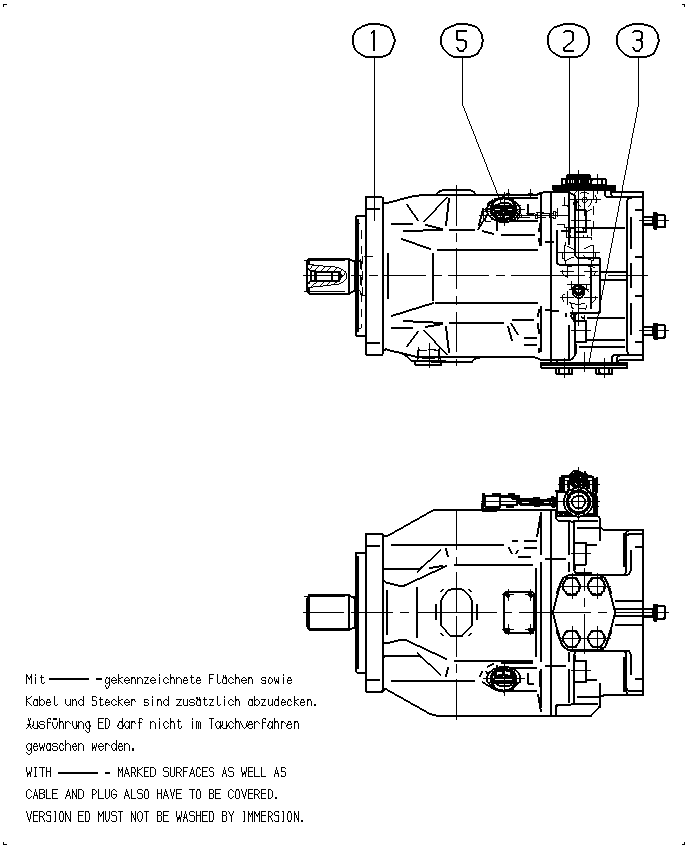

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902430763 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400584 | FLANGE COVER | 1 | ||
| R902400594 | FLANGE COVER | 1 | ||
| R902603191 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | With pressure cut-off Electric U = 24 V | ED72 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2/4-hole | D |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
| Connector for solenoids | 14 With electric swivel angle sensor PAL Ratiometric Power supply U = 5V DC | H |
