Unit · AXIAL-PISTON PUMP
AHA10VO100DFR1/31R-VUD12K01-S1730R902430809
Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO100DFR1/31R-VUD12K01-S1730, material number R902430809. Nominal size: NG 100. Version: high-speed version (external dimensions are the same as the standard version) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter; limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 1730.
- Number
- R902430809
- Type code
- AHA10VO100DFR1/31R-VUD12K01-S1730
- Group
- A10VO 100
- Edition
- 07/2020

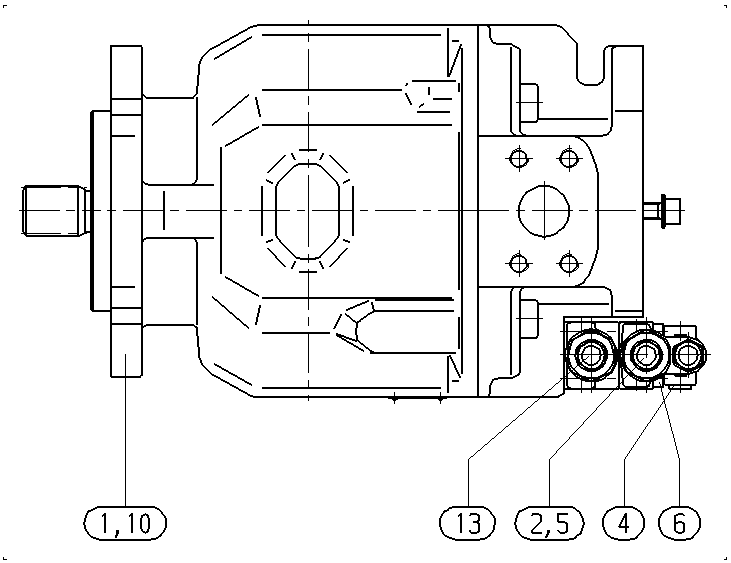

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902430717 | BASE UNIT Assembly parts list →L | 1 | ||
| R902532998 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R902434482 | SEAL | 1 | ||
| R910977200 | SOCKET HEAD CAP SCREW | 4 | ||
| R910917794 | SIDE MARKER RING | 1 | ||
| R902455818 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | High-speed version (external dimensions are the same as the standard version) | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Reduced diameter; limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) 2/4-hole | D |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
