Unit · AXIAL-PISTON PUMP
A A10V O 25 DFR1/52R-HRC40N00 -S1005R902431081
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO25DFR1/52R-HRC40N00-S1005, material number R902431081. Nominal size: NG 25. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: similar to shaft "S" however for higher torque (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: without through drive (N00). Special version no. 1005.
- Number
- R902431081
- Type code
- A A10V O 25 DFR1/52R-HRC40N00 -S1005
- Group
- A10VO 25
- Edition
- 06/2020

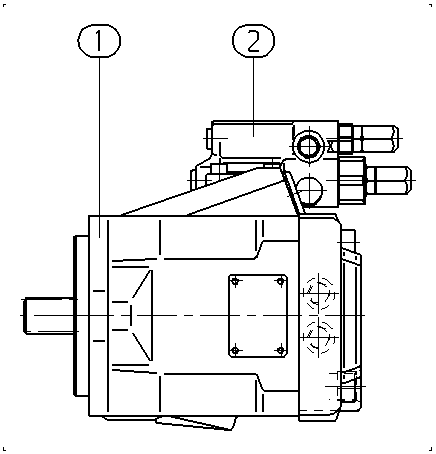

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902431036 | BASE UNIT Assembly parts list →L | 1 | ||
| R902532995 | CONTROL VALVE Assembly parts list →L | 1 | ||
| 70 | R902602013 | SEAL SCREW | 1 | |
| 71 | R902602206 | SEAL SCREW | 1 | |
| 72 | R902602010 | SEAL SCREW | 1 | |
| 73 | R902602007 | SEAL SCREW | 2 | |
| 75 | R909830326 | NAMEPLATE | 1 | |
| 76 | R902602008 | SEAL SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 25 | 25 |
| Control device | with flow controller X-T plugged with flushing function | DFR1 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | similar to shaft "S" however for higher torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Through drive | Without through drive | N00 |
