Unit · CONTROL
V AA6V M 250 EP1D /63-V527R902431109
Control Bosch Rexroth series A6VM, type code VAA6VM250EP1D/63-V527, material number R902431109. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) (EP1). Pressure control (only for HD and EP): pressure control Fixed setting (D). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (527).
- Number
- R902431109
- Type code
- V AA6V M 250 EP1D /63-V527
- Group
- A6VM 250
- Edition
- 06/2020

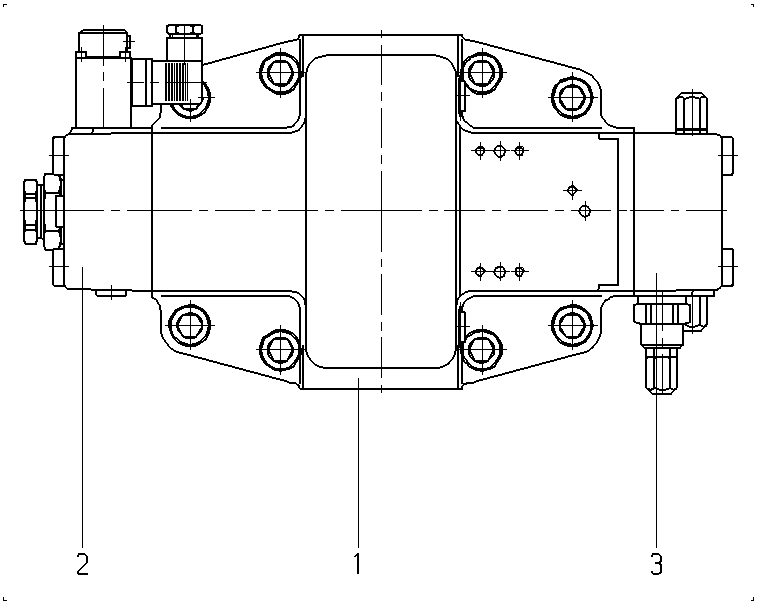

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910961397 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910989189 | CONTROL PART Assembly parts list →L | 1 | ||
| R902431110 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) | EP1 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Series | Series 6, index 3 | 63 |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 527 |
