Unit · AXIAL-PISTON PUMP

ALAA10VSO140DFR1/31R-PKD62K68-S1092R902431185

Axial piston pump Bosch Rexroth series A10VSO, type code ALAA10VSO140DFR1/31R-PKD62K68-S1092, material number R902431185. Nominal size: NG 140. Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 1092.

Number
R902431185
Type code
ALAA10VSO140DFR1/31R-PKD62K68-S1092
Group
A10VSO 140
Edition
06/2020

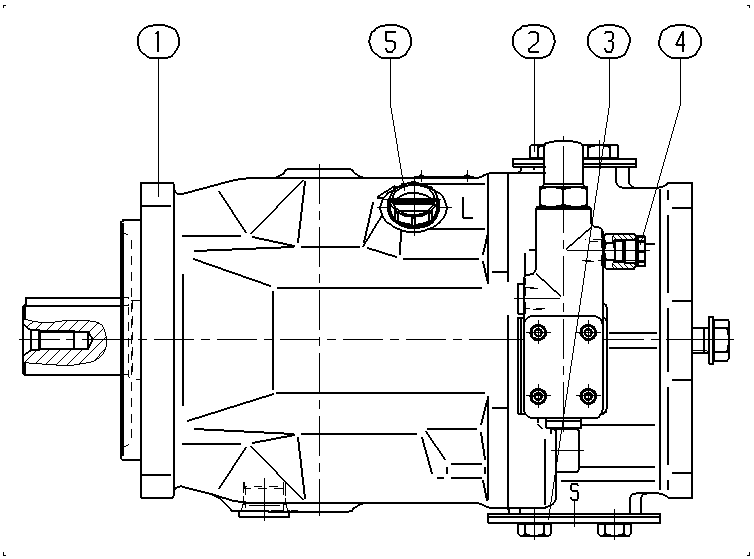

ALAA10VSO140DFR1/31R-PKD62K68-S1092 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902500175AXIAL-PISTON PUMP Assembly parts list →L1
R902400585FLANGE COVER1
R902400595FLANGE COVER1
R902602015SEAL SCREW2
R902603191SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Operating modePump, open circuitO
Size (NG)140140
Control devicewith flow controller X-T plugged, with flushing functionDFR1
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialNBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluidP
Drive shaftParallel keyed shaft permissible through-drive torque ISO 3019-1K
Working portSAE flange ports according to ISO 6162, UNC fastening thread laterally opposite62
Through drive101-2 (B) 7/8 in 13T 16/32DPK68
