Unit · AXIAL-PISTON PUMP
AA10VSO100DFE/31R-PPA12X10-SO479R902431490
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO100DFE/31R-PPA12X10-SO479, material number R902431490. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Special version no. 479.
- Number
- R902431490
- Type code
- AA10VSO100DFE/31R-PPA12X10-SO479
- Group
- A10VSO 100
- Edition
- 06/2020

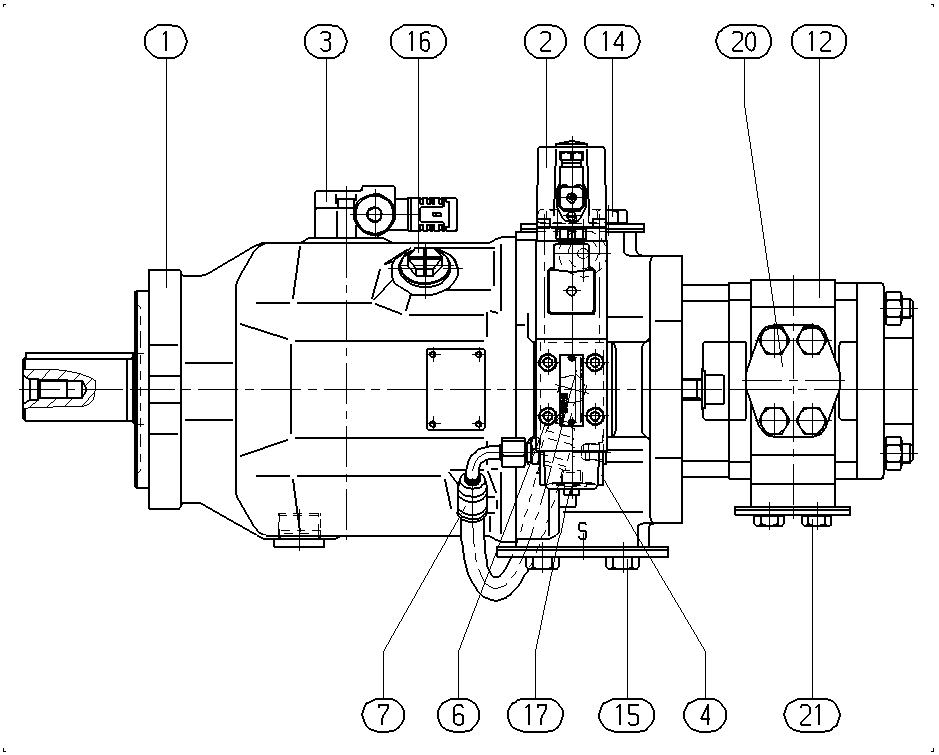

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902431482 | BASE UNIT Assembly parts list →L | 1 | ||
| R902425762 | ELECTRONIC CONTROLS Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902409295 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910977098 | SOCKET HEAD CAP SCREW | 4 | ||
| R910969083 | HOSE ASSEMBLY Assembly parts list →L | 1 | ||
| R910986346 | GEAR PUMP | 1 | ||
| R902400584 | FLANGE COVER | 1 | ||
| R902400594 | FLANGE COVER | 1 | ||
| R902602012 | SEAL SCREW | 1 | ||
| R909831377 | GUARD PLUG | 1 | ||
| R902400576 | FLANGE COVER | 1 | ||
| R902400582 | FLANGE COVER | 1 | ||
| 61 | R910109762 | SOCKET HEAD CAP SCREW | 2 | |
| 62 | R902650190 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
