Unit · ROTARY GROUP
TWA4VSG750K/30L-VPHK00R902432154
Rotary group Bosch Rexroth series A4VSG, type code TWA4VSG750K/30L-VPHK00, material number R902432154. Nominal size: NG 750. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: in accordance with ISO 3019-2 metric 8-hole (H). Valves: without valve block (0).
- Number
- R902432154
- Type code
- TWA4VSG750K/30L-VPHK00
- Group
- A4VSG 750
- Edition
- 07/2020

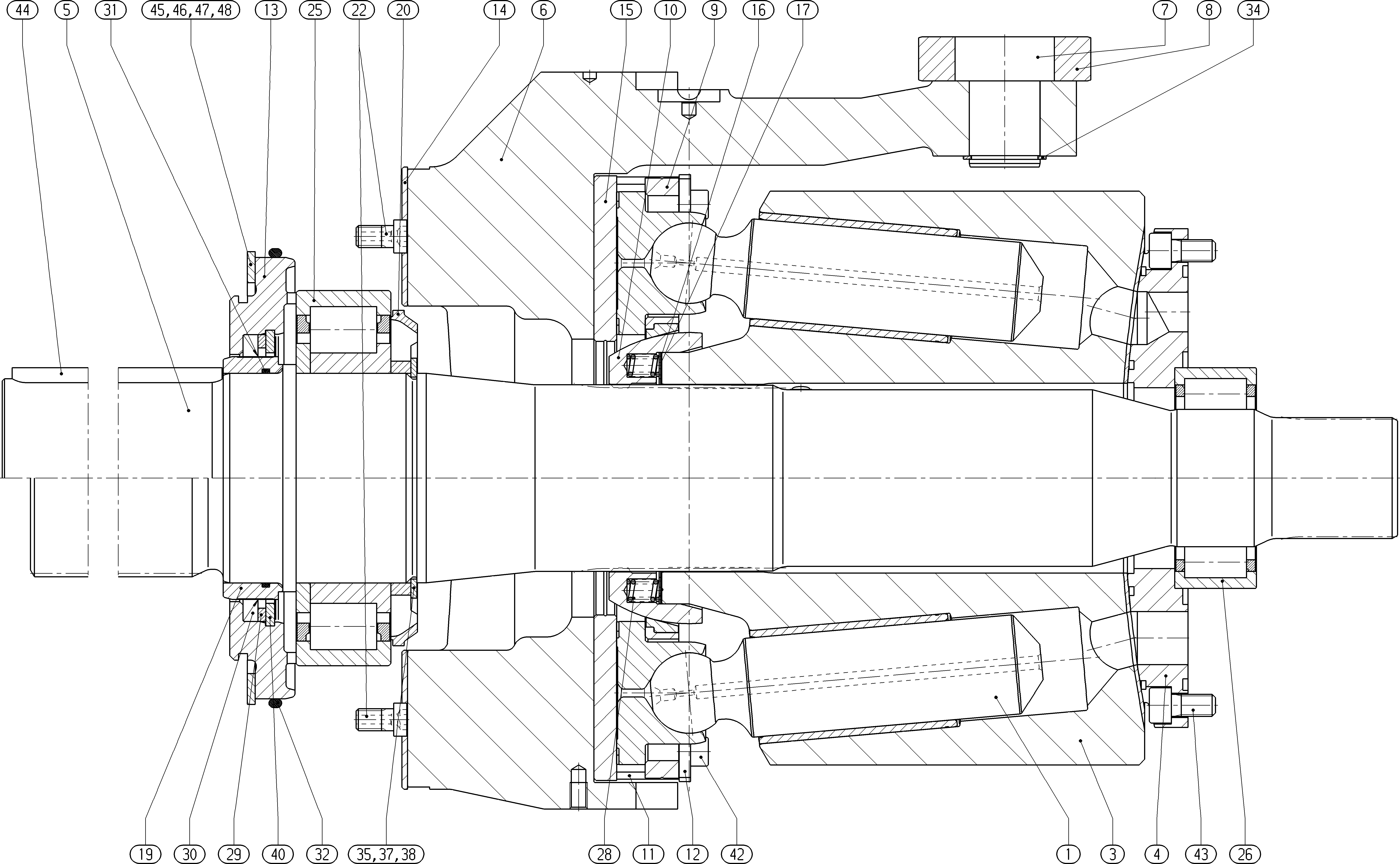

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902476270 | PISTON PAD | 9 | ||
| R902423078 | CYLINDER | 1 | ||
| R910993179 | DISTRIBUTOR PLATE | 1 | ||
| R902408126 | DRIVE SHAFT | 1 | ||
| R910967562 | SWASH PLATE | 1 | ||
| R910935543 | DRIVER PIVOT | 1 | ||
| R910935544 | SLIDER | 1 | ||
| R910967569 | RETAINING PLATE | 1 | ||
| R910983757 | RETAINING BALL | 1 | ||
| R910967566 | SPACER SEGMENT | 4 | ||
| R902570178 | SEGMENT | 4 | ||
| R902404945 | SEALING FLANGE | 1 | ||
| R902570608 | BEARING SHELL | 2 | ||
| R910983271 | SLIDING DISC | 1 | ||
| R910969282 | SHIM RING | 2 | ||
| R910960755 | SHIM RING | 2 | ||
| R910993137 | SEAL BUSHING | 1 | ||
| R910984822 | FEED WHEEL | 1 | ||
| R910969259 | SETTING SCREW | 2 | ||
| R902572611 | CYL. ROLLER BEARING | 1 | ||
| R910978527 | CYL. ROLLER BEARING | 1 | ||
| R910965727 | COMPRESSION SPRING | 20 | ||
| R910995889 | SUPPORTING DISC | 1 | ||
| R902400800 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910404209 | O-RINGD | 1 | ||
| R910967196 | O-RINGD | 1 | ||
| R910187976 | RETAINING RING | 1 | ||
| R910436674 | RETAINING RING | 1 | ||
| R910984818 | RETAINING RING | 1 | ||
| R910984817 | RETAINING RING | 1 | ||
| R910106127 | RETAINING RING | 1 | ||
| R902650871 | SOCKET HEAD CAP SCREW | 8 | ||
| R910109592 | SOCKET HEAD CAP SCREW | 6 | ||
| R910638269 | PARALLEL KEY | 1 | ||
| R910991999 | RETAINING RING | 1 | ||
| R910992000 | RETAINING RING | 1 | ||
| R910992001 | RETAINING RING | 1 | ||
| R910992002 | RETAINING RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 750 | 750 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | In accordance with ISO 3019-2 metric 8-hole | H |
| Valves | Without valve block | 0 |
