Unit · PIPING

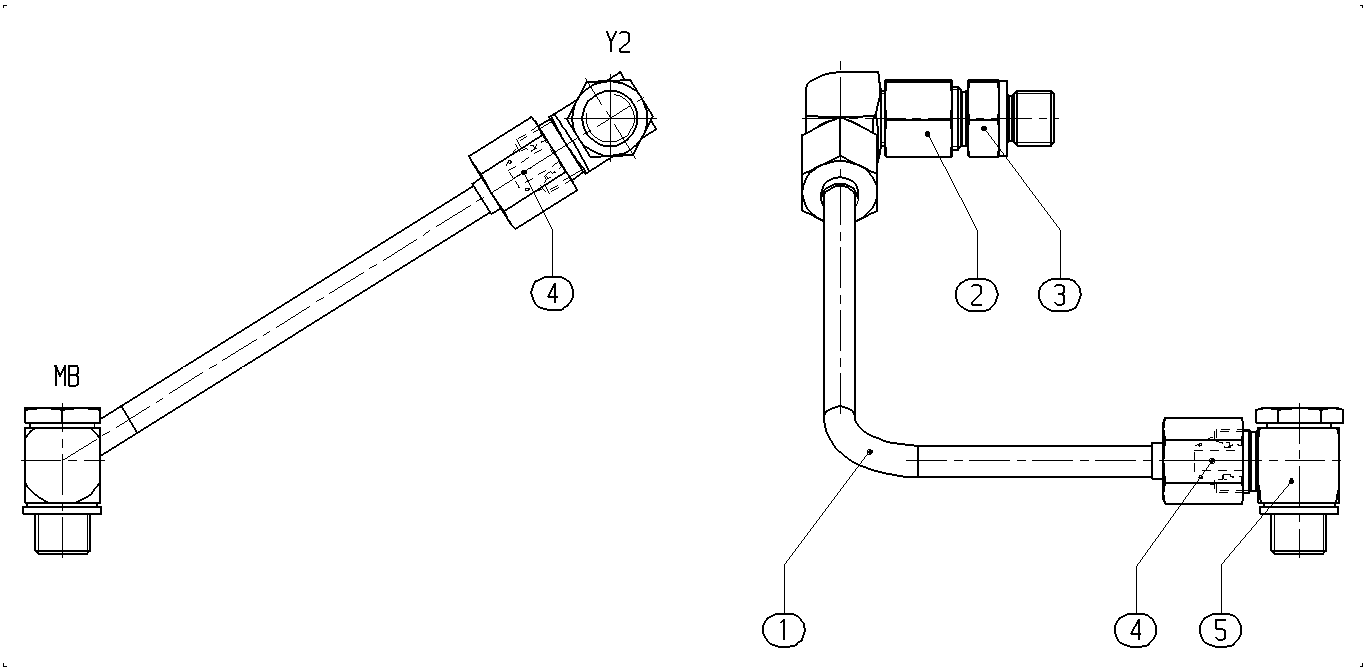

PIPING A4CSG 125HDD/30R'MB-&R902432262
Axial piston pump Bosch Rexroth series A4CSG, type code PIPINGA4CSG125HDD/30R'MB-&, material number R902432262.
- Number
- R902432262
- Type code
- PIPING A4CSG 125HDD/30R'MB-&
- Group
- A4CSG 125
- Edition
- 02/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902432264 | PIPE Assembly parts list →L | 1 | ||
| R910761966 | THREADED FASTENER | 1 | ||
| R910960552 | MALE CONNECTOR | 1 | ||
| R910948774 | INTERMEDIATE RING | 2 | ||
| R910963659 | THREADED FASTENER | 1 |
