Unit · PIPING
PIPING A4CSG 125 HDA/30X 'M&R902432266
Axial piston pump Bosch Rexroth series A4CSG, type code PIPINGA4CSG125HDA/30X'M&, material number R902432266.
- Number
- R902432266
- Type code
- PIPING A4CSG 125 HDA/30X 'M&
- Group
- A4CSG 125
- Edition
- 02/2020

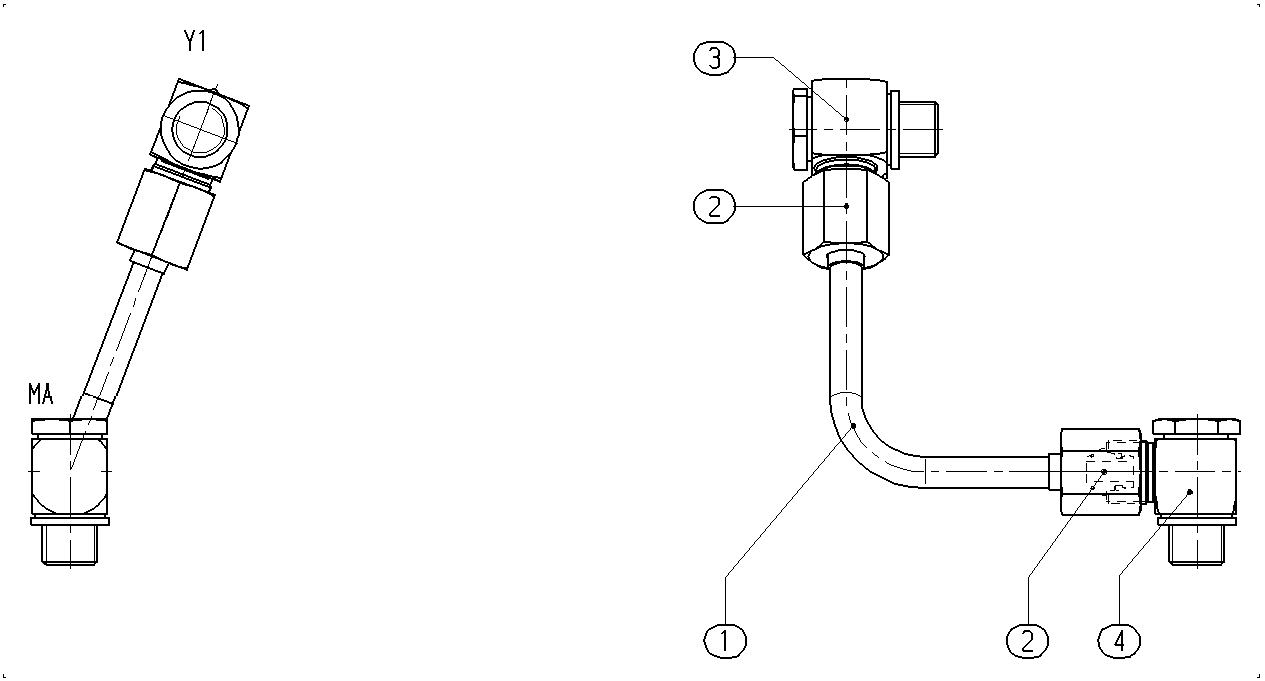

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902432268 | PIPE Assembly parts list →L | 1 | ||
| R910948774 | INTERMEDIATE RING | 2 | ||
| R910778788 | THREADED FASTENER | 1 | ||
| R910963659 | THREADED FASTENER | 1 |
