Unit · AXIAL-PISTON PUMP
A A4VSO 125 HD1T /30R-PPB13K27R902432484
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO125HD1T/30R-PPB13K27, material number R902432484. Nominal size: NG 125. Axial piston unit: swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) (AA4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P).
- Number
- R902432484
- Type code
- A A4VSO 125 HD1T /30R-PPB13K27
- Group
- A4VSO 125
- Edition
- 07/2020

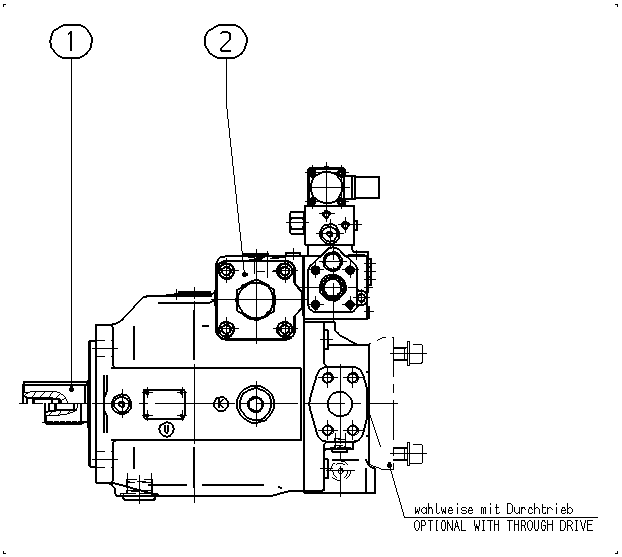

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902405636 | BASE UNIT Assembly parts list →L | 1 | ||
| R902405154 | CONTROL Assembly parts list →L | 1 | ||
| 61 | R902421947 | SHIPPING PROTECTION | 1 | |
| 62 | R902602013 | SEAL SCREW | 1 | |
| 63 | R902421950 | SHIPPING PROTECTION | 1 | |
| 71 | R902568998 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602010 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) | AA4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 125 | 125 |
| Series | Series 3, index 0 | 30 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Through-drive | 27 | 27 |
