Unit · AXIAL-PISTON PUMP
AL A10V O 85 DFR1/52R-VUC62N00 -SO262R902432860
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO85DFR1/52R-VUC62N00-SO262, material number R902432860. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite (62). Through drive: without through drive (N00). Special version no. 262.
- Number
- R902432860
- Type code
- AL A10V O 85 DFR1/52R-VUC62N00 -SO262
- Group
- A10VO 85
- Edition
- 06/2020

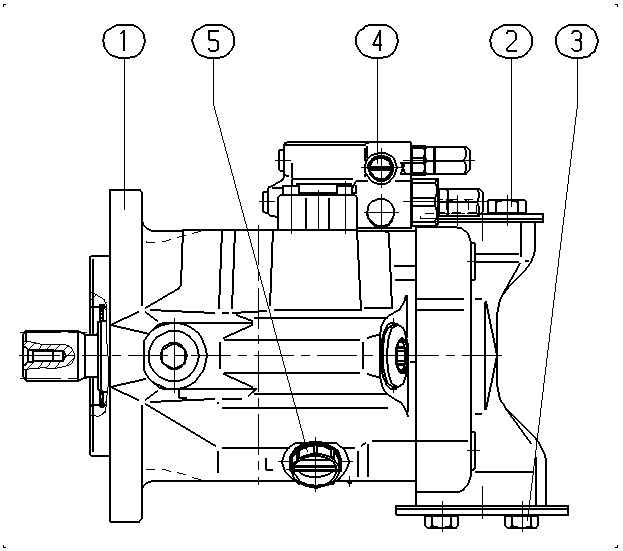

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902432861 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400585 | FLANGE COVER | 1 | ||
| R902400595 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603191 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 85 | 85 |
| Control device | with flow controller X-T plugged with flushing function | DFR1 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | reduced diameter, limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite | 62 |
| Through drive | Without through drive | N00 |
Other versions 14
- R902464638 A A10V O 85 DFR1/52R-VUC62N00
- R902503600 A A10V O 85 DFR1/52R-VUC62N00 -S1079
- R902505050 A A10V O 85 DFR1/52R-VUC62N00 -S2222
- R902501917 A A10V O 85 DFR1/52R-VUC62N00 -S2699
- R902473866 A A10V O 85 DFR1/52R-VUC62N00 -S2715
- R902571843 A A10V O 85 DFR1/52R-VUC62N00 -SO 97
- R902432861 A A10V O 85 DFR1/52R-VUC62N00 -SO262
- R902417773 A A10V O 85 DFR1/52R-VUC62N00 -SO547
- R902464637 AL A10V O 85 DFR1/52R-VUC62N00
- R902503598 AL A10V O 85 DFR1/52R-VUC62N00 -S1079
- R902505048 AL A10V O 85 DFR1/52R-VUC62N00 -S2222
- R902501916 AL A10V O 85 DFR1/52R-VUC62N00 -S2699
- R992000707 AL A10V O 85 DFR1/52R-VUC62N00 -SO547
- R902417772 ALA10VO85DFR1/52R-VUC62N00-SO547
